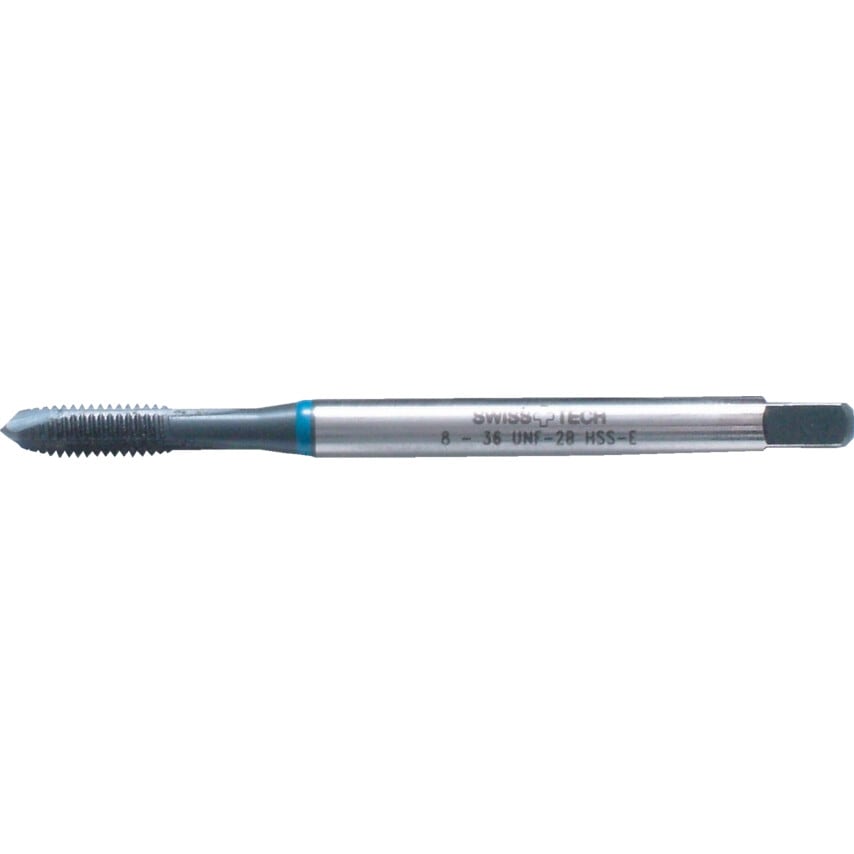

Spiral Point/Gun Nose - UNF
HSS-EV Oxidised Finish
UNF - Unified National Fine
Bright Finish
Taper lead to DIN form B (3.5 x P to 5.5 x P)
Tapping tolerance to 2B
Manufactured to DIN 374
For through holes
Tapping tolerance to 6HX.
| Thread Size | May-16in |
| Number of Flutes | 3 |
| Thread Standard | UNF |
| Overall Length | 90.0mm |
| Class of Fit | 2B |
| Finish/Coating | Bright |
| Shank Diameter | 6.0mm |
| Tap Type | Spiral Point |
| Pitch | 24.0 |
| Material Grade | M35 |
| Thread Direction | Right Hand |
| Thread Length | 22.0mm |
| Dimensions Standard | DIN 374 |
| Teeth per Inch | 24 |
| Square Width | 4.9mm |
| Material | Vanadium High Speed Steel |
