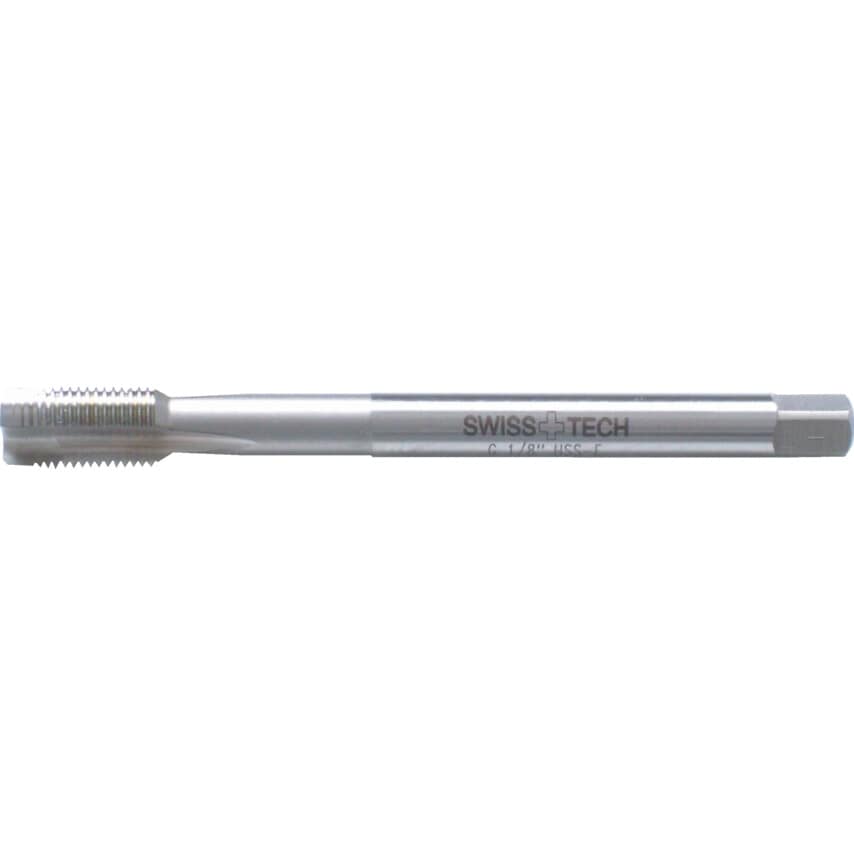

Spiral Point/Gun Nose - BSP
HSS-EV Oxidised Finish
BSP - British Standard Pipe
Bright Finish
Taper lead to DIN form B (3.5 x P to 5.5 x P)
Tapping tolerance to 2B
Manufactured to DIN 5156
For through holes
Tapping tolerance to 6HX.
| Square Width | 9.0mm |
| Dimensions Standard | DIN 5156 |
| Thread Length | 24.0mm |
| Pitch | 19.0 |
| Finish/Coating | Bright |
| Overall Length | 100.0mm |
| Class of Fit | 6H |
| Shank Diameter | 12.0mm |
| Thread Size | 3/8in |
| Thread Direction | Right Hand |
| Number of Flutes | 3 |
| Teeth per Inch | 19 |
| Material Grade | M35 |
| Thread Standard | BSP |
| Material | Vanadium High Speed Steel |
| Tap Type | Spiral Point |
