The tool geometry (with up to 138 parameters) has been developed and optimised during long-term tests in co operation with users for the different sections of structural steel, aluminum casting, machining steel, VA steels, heat-resistant steels and tool steels. Selected hard coatings increase the range of applications. The objective of developing Swiss+Tech's 'Black Ring' Taps was the realisation of narrower tolerances and more efficient cutting times
for the thread production.
The unique general purpose properties of these taps guarantee high productivity by reducing the amount of time spent changing taps for different materials and at the same time reduces the number of taps required by the machine shop.

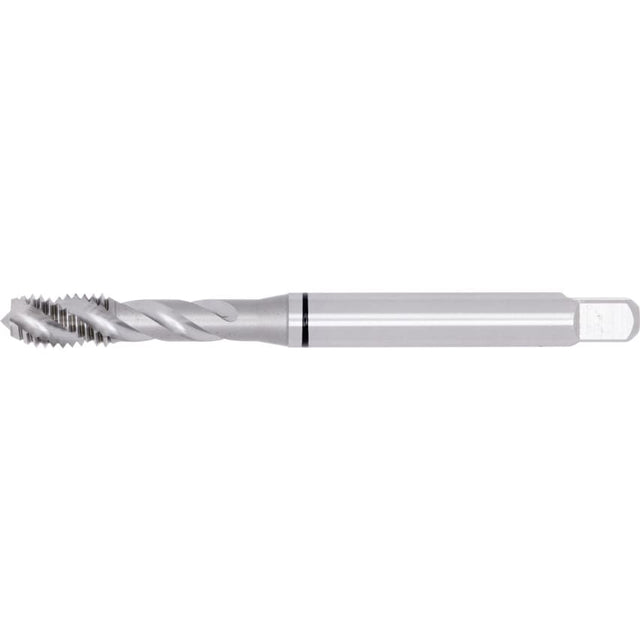

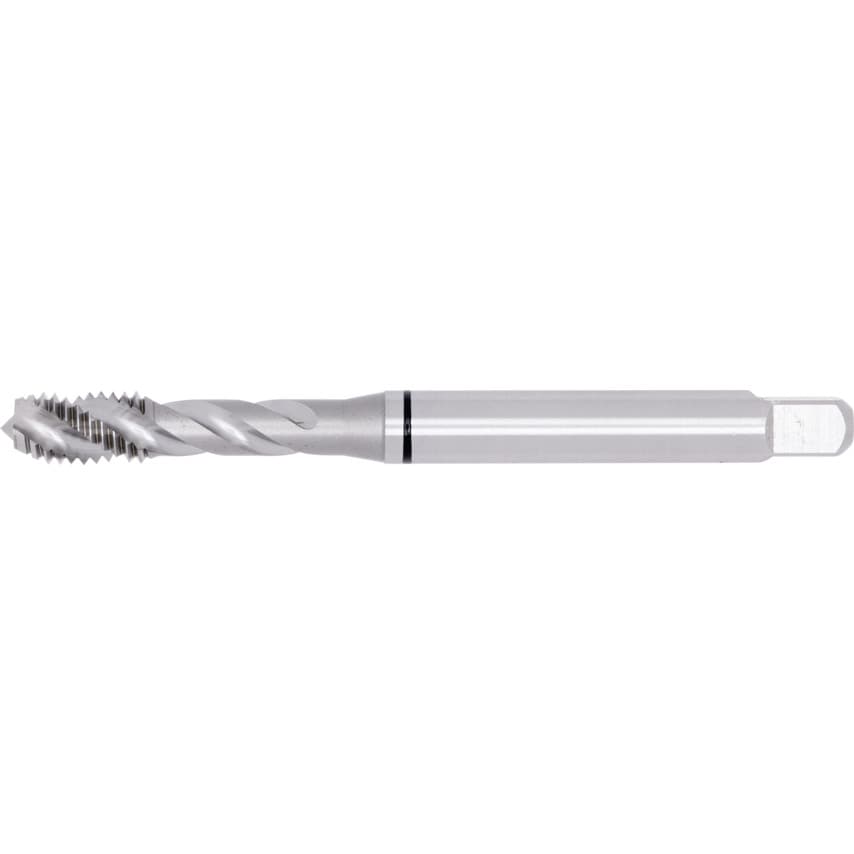

Swiss+Tech 'Black Ring' machine taps with their wide range of applications are the result of years of experience in metal cutting.
Features and Benefits
HSS-Co construction for increased toughness
Deigned for applications involving blind holes

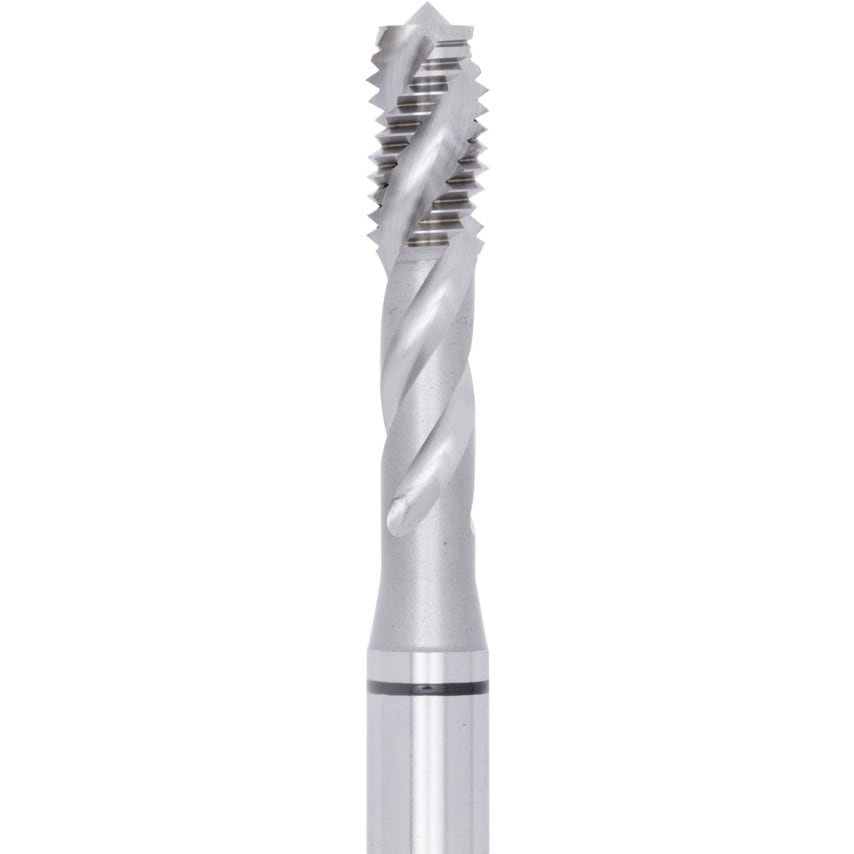

Right Hand spiral flutes for right handed cutting
40 'Supra Extra' chamfer form C blind holes <1,5 d all round IS0 2 (6H)
Typical Applications
General tapping applications
Standards
ISO Metric
Manufactured to DIN 371/376
Notes
For general tapping applications. For production tapping of specific materials a specialist tap may be more suitable.
| Material | Cobalt High Speed Steel |
| Thread Direction | Right Hand |
| Thread Size | M8 |
| Square Width | 6.2mm |
| Tapping Depth | 20.0mm |
| Pitch | 1.3 |
| Class of Fit | 6H |
| Thread Length | 14.0mm |
| Material Grade | M35 |
| Overall Length | 90.0mm |
| Helix Angle | 40\u00b0 |
| Dimensions Standard | DIN 371 |
| Number of Flutes | 3 |
| Thread Standard | Metric Coarse |
| Finish/Coating | Bright |
| Shank Diameter | 8.0mm |
| Tap Type | Spiral Flute |
