£0.79

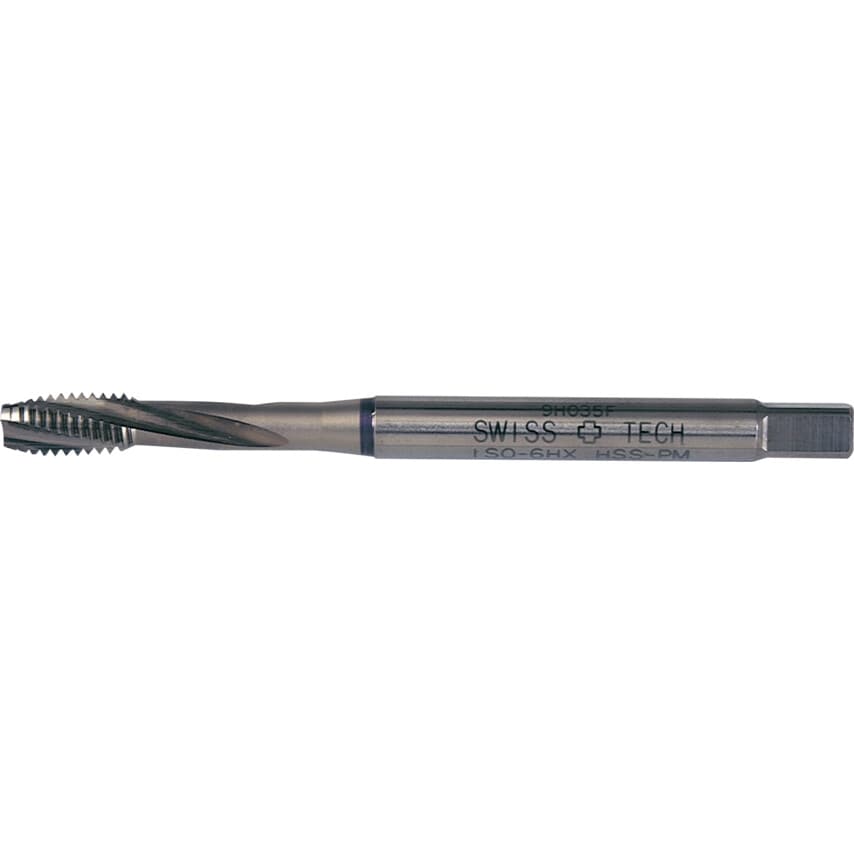

Spiral Flute - ISO Metric Coarse
HSS-PM Nitride Finish. For blind holes. Taper lead to DIN form B (3 x P). Tapping tolerance to 6HX.
ISO Metric Coarse
Helix angle 15. Tapping depth 2.5 x D.
Tap Type | Spiral Flute |
Thread Direction | Right Hand |
Shank Diameter | 6.00mm |
Number of Flutes | 3 |
Class of Fit | 6HX |
Material Grade | HSS-PM |
Dimensions Standard | DIN 371 |
Pitch | 1 |
Helix Angle | 15\u00b0 |
Thread Standard | Metric Coarse |
Material Application | Nickel | Titanium Alloys |
Ring Colour | Purple |
Thread Size | M6 |
Thread Length | 11.00mm |
Coolant Delivery | External |
Overall Length | 80.0mm |
Finish/Coating | Nitride |
Tapping Depth | 15.0mm |
Square Width | 4.90mm |
Material | Powdered Metal High Speed Steel |
