£0.79

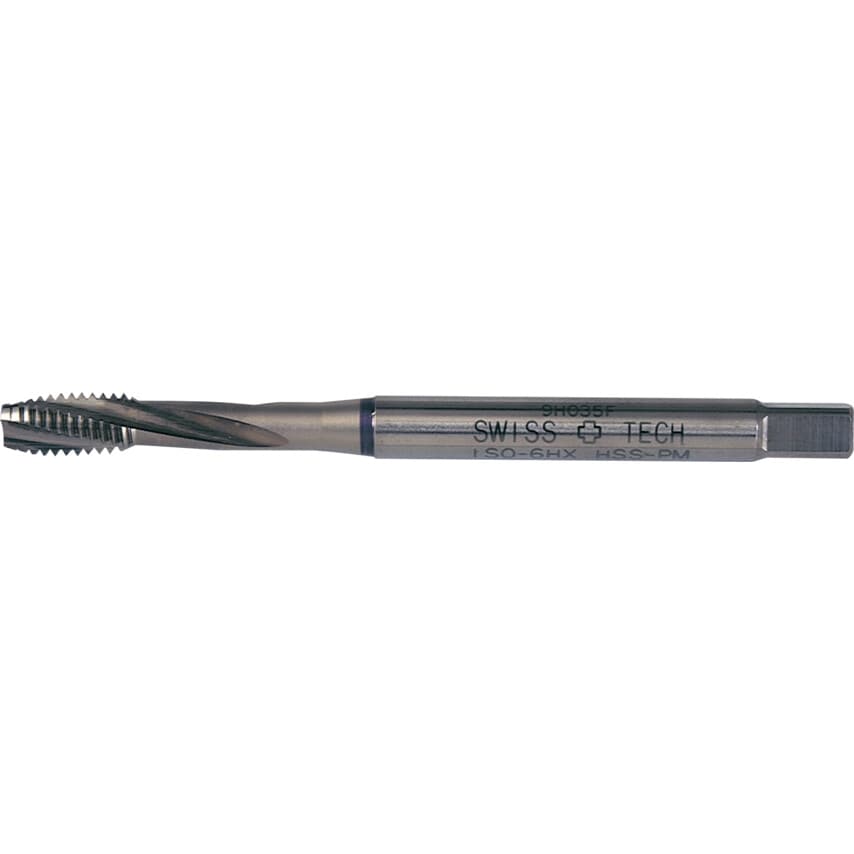

Spiral Flute - ISO Metric Coarse
HSS-PM Nitride Finish. For blind holes. Taper lead to DIN form B (3 x P). Tapping tolerance to 6HX.
ISO Metric Coarse
Helix angle 15. Tapping depth 2.5 x D.
Pitch | 1.25 |
Material Grade | HSS-PM |
Helix Angle | 15\u00b0 |
Overall Length | 90.0mm |
Dimensions Standard | DIN 371 |
Number of Flutes | 3 |
Material Application | Nickel | Titanium Alloys |
Thread Size | M8 |
Material | Powdered Metal High Speed Steel |
Thread Direction | Right Hand |
Class of Fit | 6HX |
Coolant Delivery | External |
Tap Type | Spiral Flute |
Thread Standard | Metric Coarse |
Tapping Depth | 20.0mm |
Ring Colour | Purple |
Thread Length | 12.00mm |
Shank Diameter | 8.00mm |
Finish/Coating | Nitride |
Square Width | 6.20mm |
