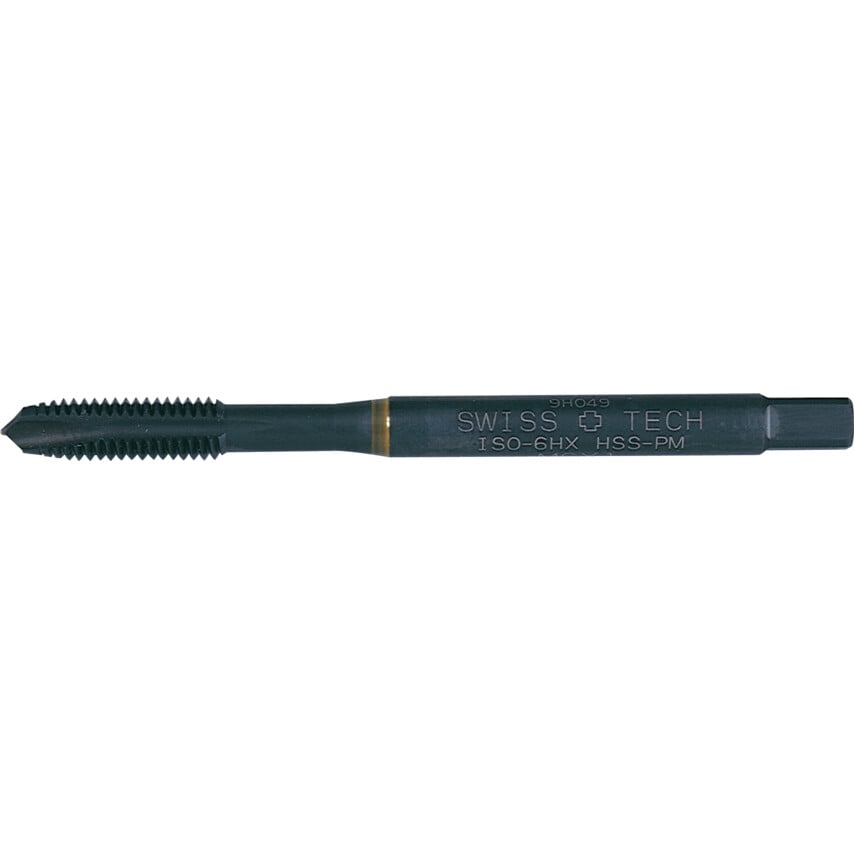

Spiral Point/Gun Nose - ISO Metric Coarse
HSS-PM Nitride & Oxide Finish. For through holes. Taper lead to DIN form B (3.5 x P to 5.5 x P). Tapping tolerance to 6HX.
| Thread Standard | Metric Coarse |
| Coolant Delivery | External |
| Thread Direction | Right Hand |
| Overall Length | 100.0mm |
| Finish/Coating | Nitride | Steam Tempered |
| Tap Type | Spiral Point |
| Ring Colour | Orange |
| Pitch | 1.5 |
| Square Width | 8.00mm |
| Thread Length | 24.00mm |
| Shank Diameter | 10.00mm |
| Material Grade | HSS-PM |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Material Application | High-Temperature Alloys | Nickel | Titanium Alloys |
| Thread Size | M10 |
| Material | Powdered Metal High Speed Steel |
| Dimensions Standard | DIN 371/376 |
