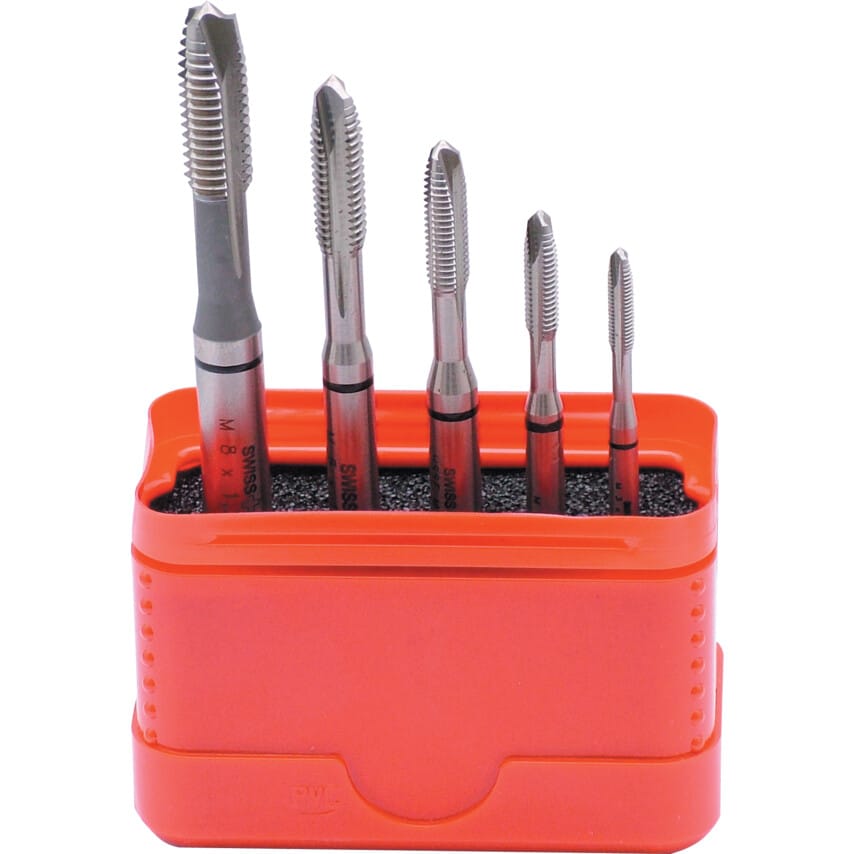

The Swiss+Tech Black Ring bright finish spiral point HSS-E machine taps are for through holes. Taper lead to DIN form B.
Contents:
M3 x 0.5mm Pitch 2.5mm Thread length
M4 x 0.7mm Pitch 3.3mm Thread length
M5 x 0.8mm Pitch 4.2mm Thread length
M6 x 1.0mm Pitch 5.0mm Thread length
M8 x 1.25mm Pitch 6.8mm Thread length
For all technical specifications please refer to our catalogue.
| Shank Diameter | 3.5mm | 4.5mm | 6mm | 8mm |
| Tapping Depth | 7.5mm | 10mm | 12.5mm | 15mm | 20mm |
| Number of Pieces | 5 |
| Overall Length | 56mm | 63mm | 70mm | 80mm | 90mm |
| Ring Colour | Black |
| Finish/Coating | Bright |
| Minimum Tap Size | M8mm |
| Tap Type | Spiral Point |
| Thread Length | 2.5mm | 3.3mm | 4.2mm | 5mm | 6.8mm |
| Material Grade | M35 |
| Coolant Delivery | External |
| Material Application | Aluminium | Aluminium Alloys | Magnesium | Mild Steel | Stainless Steels | Zinc |
| Material | Cobalt High Speed Steel |
| Dimensions Standard | DIN 371 |
| Thread Standard | Metric Coarse |
| Maximum Tap Size | M8mm |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Thread Direction | Right Hnd |
| Thread Size | M3x0.5 | M4x0.7 | M5x0.8 |
