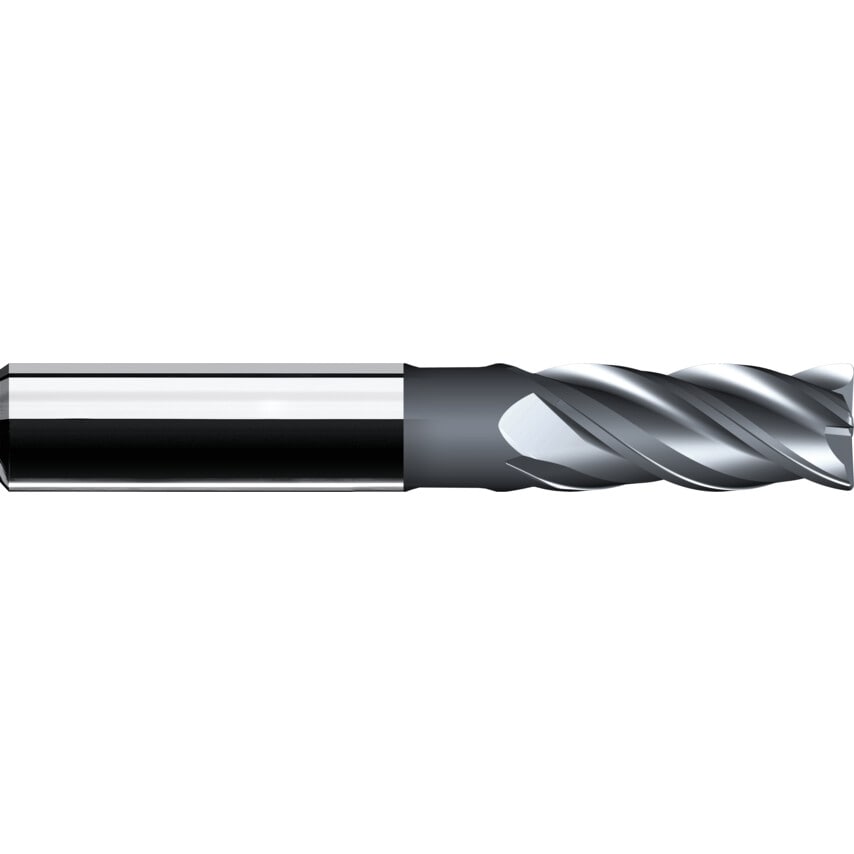

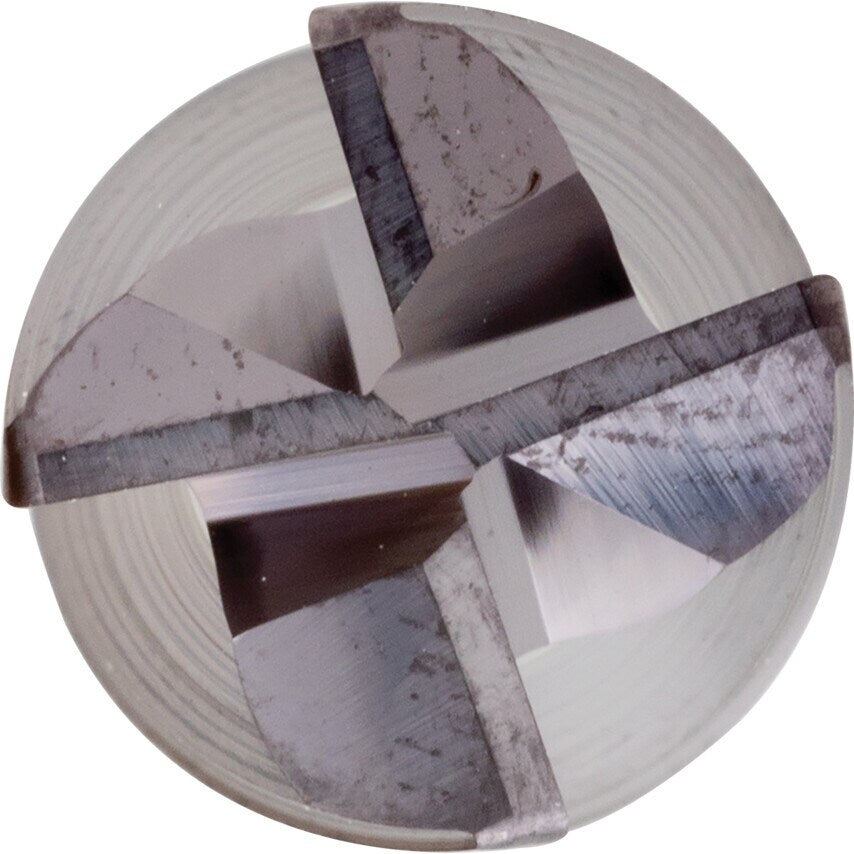

This range of 4 flute vari helix end mills are manufactured from carbide and have a 0.5mm corner radius. Finished with a TiAlN coating, the end mills are available in a range of sizes and are suited for machining steels, stainless steels and high temp alloys for versatility.
Features and Benefits
Ideal for customers machining a wide range of materials
Designed for machining Steel/Stainless and High Temp Alloys for versatility of use
35/38 variable helix for reduced vibration for improved accuracy of machining
TiAlN coating allows for increased tool life and resilience
Typical Applications
Ideal for machining steels, stainless steels and high temp alloys
| Length Type | Regular |
| Cutter Diameter | 3mm |
| Finish/Coating | TiAlN |
| Shank Diameter | 6mm |
| Shank Type | Plain Round |
| ISO Category | S |
| Flute Length | 13mm |
| End Mill Type | Corner Radius |
| Number of Flutes | 4 |
| Cutter Style | Corner Radius |
| System of Measurement | Metric |
| Overall Length | 57mm |
| Helix Angle | 35/38\u00b0 |
| Coolant Delivery | External |
| Milling Cutter Type | End Mills |
| Material | Carbide |
| Flute Type | Helical |
| Product Type | End Mills |
