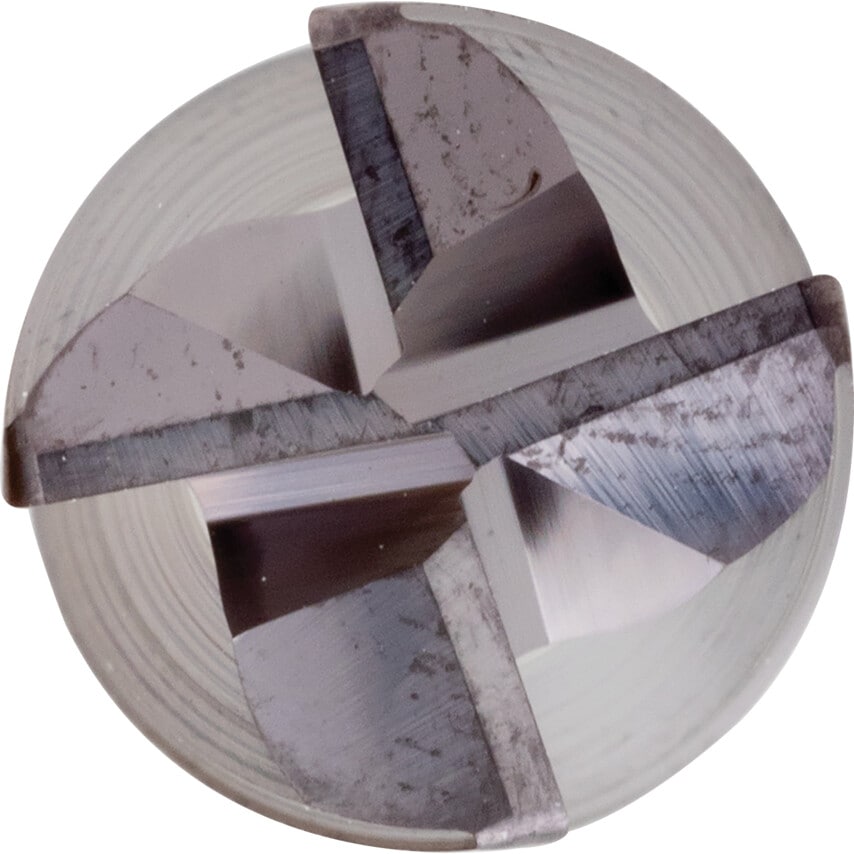

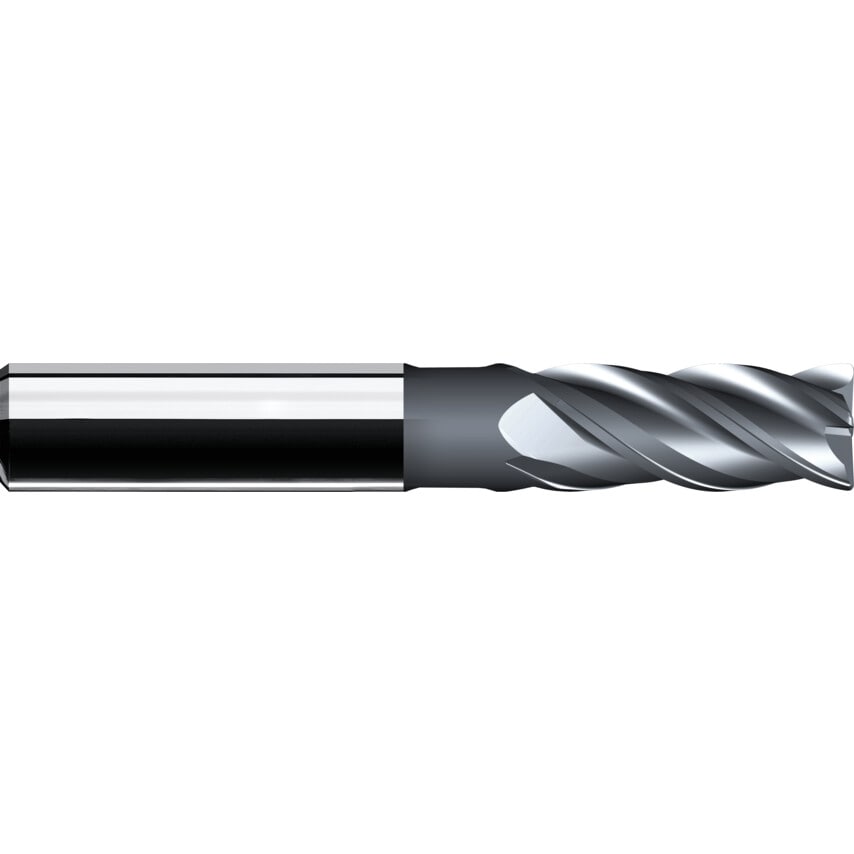

This range of 4 flute vari helix end mills are manufactured from carbide and have a 0.5mm corner radius. Finished with a TiAlN coating, the end mills are available in a range of sizes and are suited for machining steels, stainless steels and high temp alloys for versatility.
Features and Benefits
Ideal for customers machining a wide range of materials
Designed for machining Steel/Stainless and High Temp Alloys for versatility of use
35/38 variable helix for reduced vibration for improved accuracy of machining
TiAlN coating allows for increased tool life and resilience
Typical Applications
Ideal for machining steels, stainless steels and high temp alloys
| Product Type | End Mills |
| Length Type | Regular |
| Cutter Diameter | 16mm |
| Number of Flutes | 4 |
| Finish/Coating | TiAlN |
| Material | Carbide |
| ISO Category | S |
| Cutter Style | Corner Radius |
| End Mill Type | Corner Radius |
| Shank Type | Plain Round |
| System of Measurement | Metric |
| Milling Cutter Type | End Mills |
| Coolant Delivery | External |
| Overall Length | 92mm |
| Flute Type | Helical |
| Shank Diameter | 16mm |
| Flute Length | 32mm |
| Helix Angle | 35/38\u00b0 |
