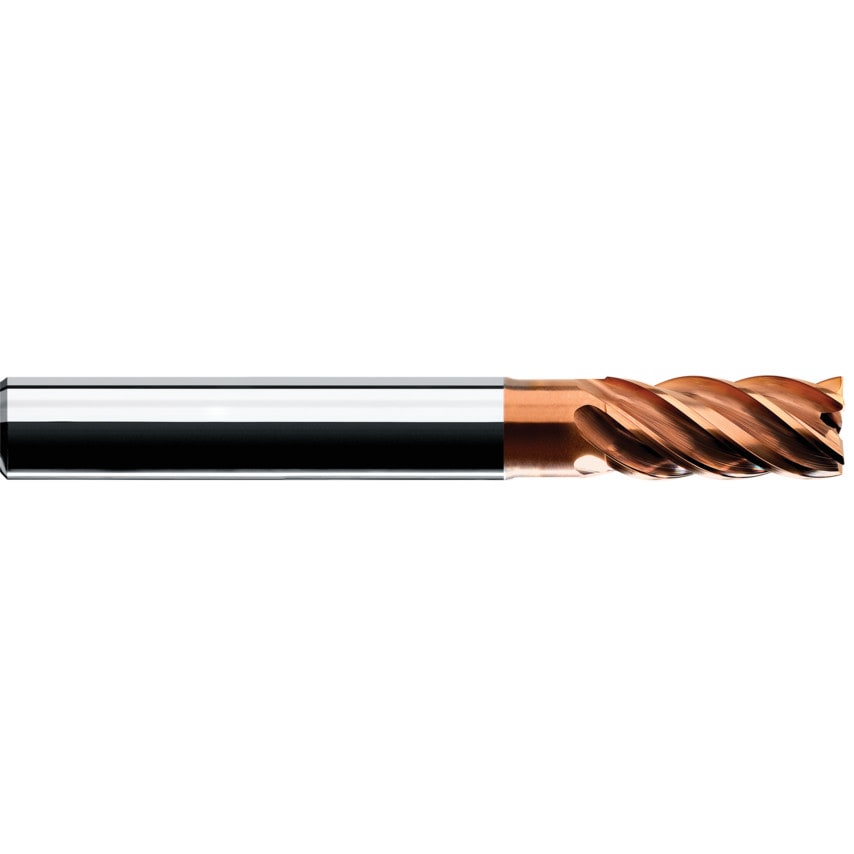

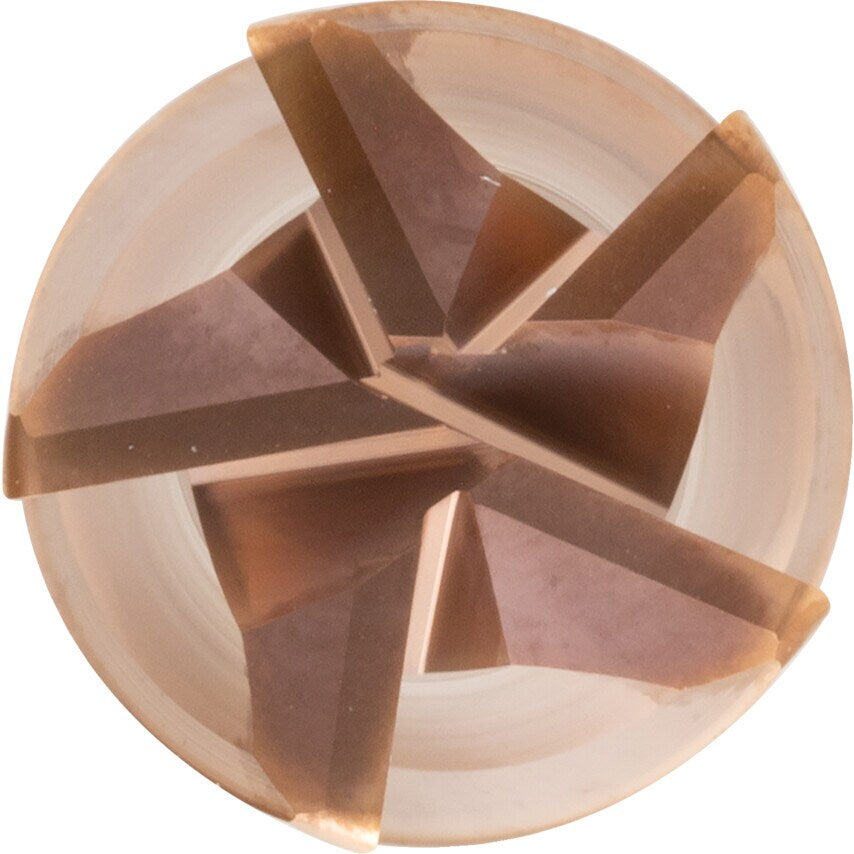

These 5 flute end mills are manufactured from carbide and possess a HP Vari Helix construction. Coated with a TiAlN Gold coating, each end mill has a 0.5mm corner radius. Available in a range of sizes and specifications to suit your specific needs. The end mills are designed specifically for roughing and semi-finishing stainless and exotic materials.
Features and Benefits
Next generation end mills for stainless/exotic materials
Ideal for roughing and semi-finishing
Variable helix construction works to reduce vibrations when working for accuracy
TiAlN Gold Coated for optimum maximum tool life and resilience
Typical Applications
Suited for roughing and semi-finishing stainless and exotic materials
| Overall Length | 51mm |
| Finish/Coating | TiAlN |
| Shank Type | Plain Round |
| Product Type | End Mills |
| Milling Cutter Type | End Mills |
| Material | Carbide |
| Coolant Delivery | External |
| Cutter Diameter | 5mm |
| Cutter Style | Corner Radius |
| Corner Radius | 0.2mm |
| Flute Length | 12mm |
| End Mill Type | Corner Radius |
| Flute Type | Helical |
| System of Measurement | Metric |
| Length Type | Regular |
| Number of Flutes | 5 |
| Shank Diameter | 6mm |
| Helix Angle | Variable\u00b0 |
