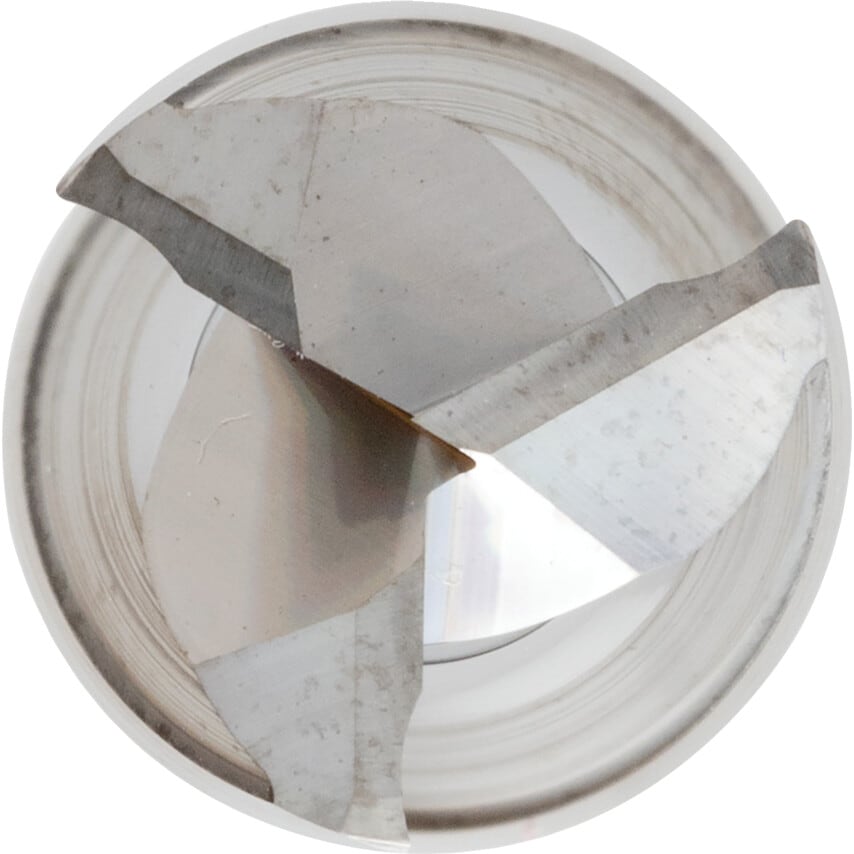

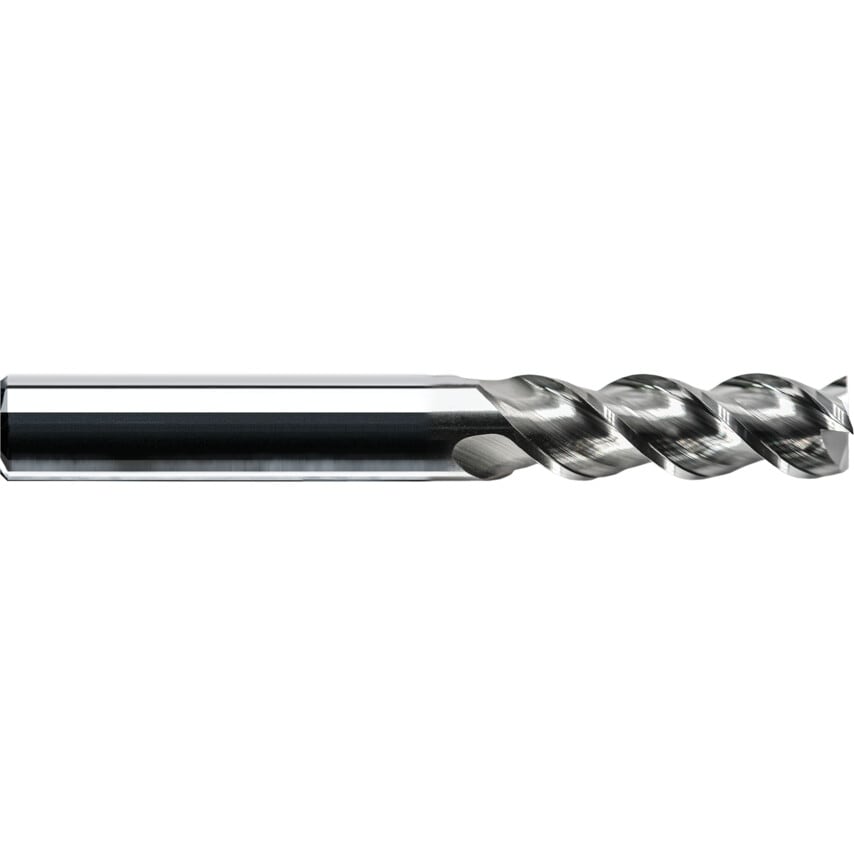

These 3 flute end mills are manufactured from carbide and are ideally suited for machining non-ferrous materials such as aluminium, bronze, lead and copper. Available in a range of sizes and specifications, each end mill is uncoated with a corner radius of 0.2mm and a 45 angle.
Features and Benefits
Perfect for non-ferrous applications such as machining aluminium, copper, lead and bronze for versatility of use
High material removal rates for quick machining
Ensures a smooth surface finish for accurate and precise machining results
Polished flutes for optimised chip evacuation
Excellent chip flow to avoid material blockages
Typical Applications
Ideal for use when machining aluminium, copper, bronze, lead or similar non-ferrous materials
| ISO Category | N |
| Milling Cutter Type | End Mills |
| Corner Radius | 0.2mm |
| Helix Angle | 45\u00b0 |
| End Mill Type | Corner Radius |
| Flute Type | Helical |
| Shank Diameter | 12mm |
| Material | Carbide |
| Cutter Diameter | 12mm |
| Shank Type | Straight |
| Length Type | Regular |
| Coolant Delivery | External |
| Flute Length | 26mm |
| Finish/Coating | Uncoated |
| Number of Flutes | 3 |
| Overall Length | 83mm |
| System of Measurement | Metric |
| Cutter Style | Corner Radius |
