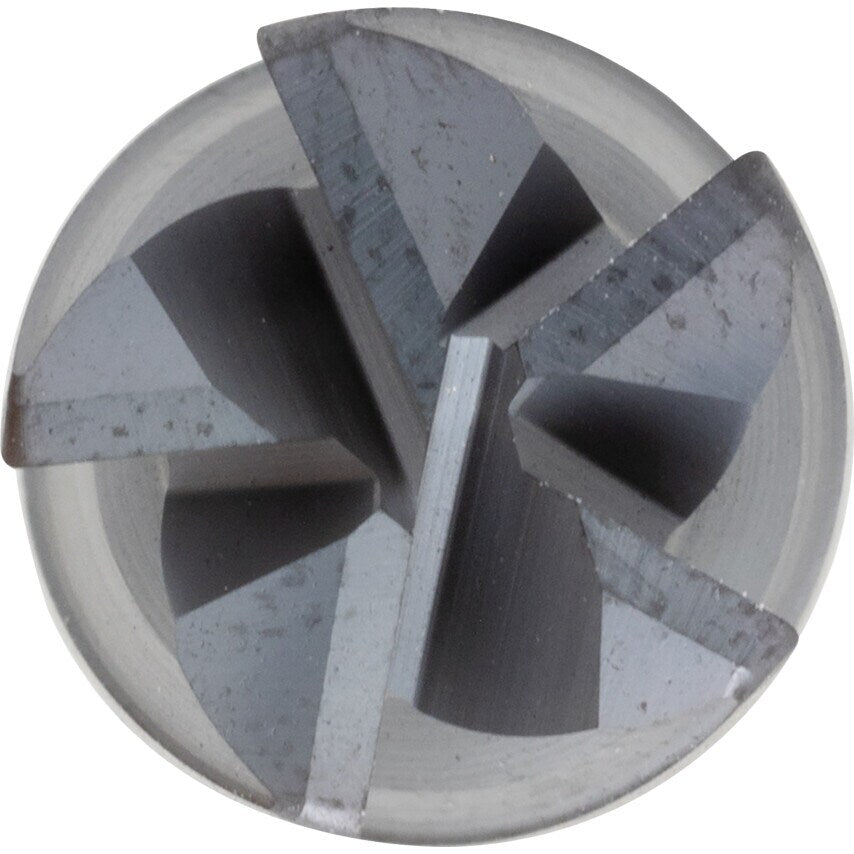

These 5 flute vari helix end mills possess a corner radius of 0.5mm and are manufactured from carbide. With a TiAlN coating for protection, each end mill possesses a 0.5mm corner radius and is available in a variety of shank and cutting diameters. These mills are ideal for machining a range of materials including steels, stainless steels and high temp alloys.
Features and Benefits
Ideal for customers machining a wide range of materials
Designed for machining Steel/Stainless and High Temp Alloys for versatility of use
35/38 variable helix ensures reduced vibrations when machining for precision
TiAlN coating for increased tool life and to bolster the durability of the end mill
Each end mill has a corner radius of 0.5mm
Typical Applications
Suited for machining wide range of materials including steels, stainless steel and high temp alloys
| Material | Carbide |
| Coolant Delivery | External |
| Milling Cutter Type | End Mills |
| Overall Length | 83mm |
| Product Type | End Mills |
| Shank Diameter | 12mm |
| Length Type | Regular |
| End Mill Type | Corner Radius |
| System of Measurement | Metric |
| Corner Radius | 0.5mm |
| Cutter Diameter | 12mm |
| Finish/Coating | TiAlN |
| Cutter Style | Corner Radius |
| ISO Category | S |
| Shank Type | Plain Round |
| Helix Angle | 35/38\u00b0 |
| Flute Type | Helical |
| Number of Flutes | 5 |
| Flute Length | 26mm |
