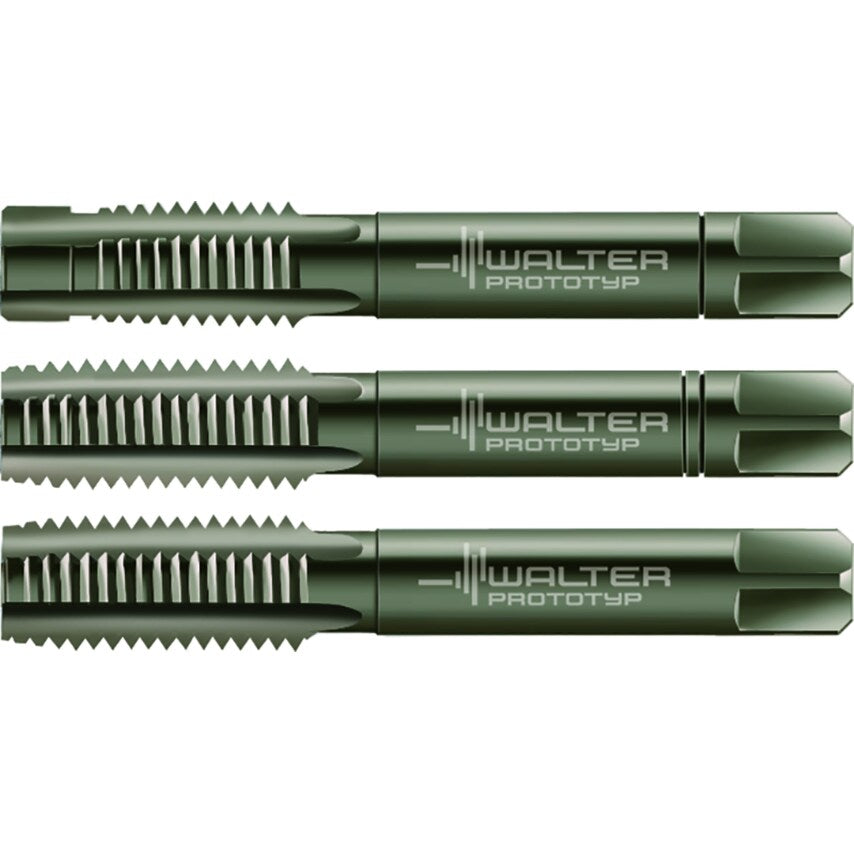

HSS-E hand-held tap set HGB Ti C = 2-3xTP (semi-bottom chamfer) 2xD M/6HX DIN 352 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID M 8 P=0.0492in
| Number of Grooves | 4 |
| Tool Designation | 30016-M8 |
| MFR Part No. | 5200419 |
| Thread Pitch | 1.25mm |
| Thread Size | M 8 |
| Functional Length | 63mm |
| Connection Diameter | 6mm |
| Driving Square Length | 8mm |
| Clamping Width | 4.9mm |
| Useable Length | 15.9mm |
| Cutting Edge Length | 19mm |
