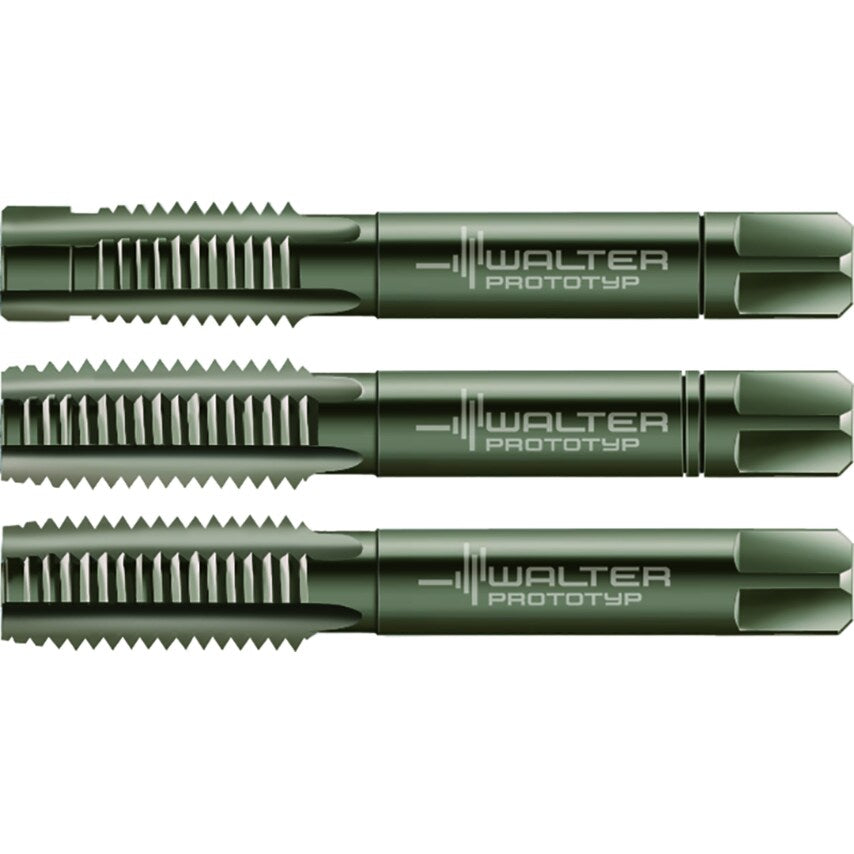

HSS-E hand-held tap set HGB Ti C = 2-3xTP (semi-bottom chamfer) 2xD M/6HX DIN 352 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID M 4 P=0.0276in
| Useable Length | 9.3mm |
| Thread Size | M 4 |
| Thread Pitch | 0.7mm |
| Driving Square Length | 6mm |
| Connection Diameter | 4.5mm |
| Cutting Edge Length | 11mm |
| Clamping Width | 3.4mm |
| Functional Length | 45mm |
| Number of Grooves | 3 |
| Tool Designation | 30016-M4 |
| MFR Part No. | 5200415 |
