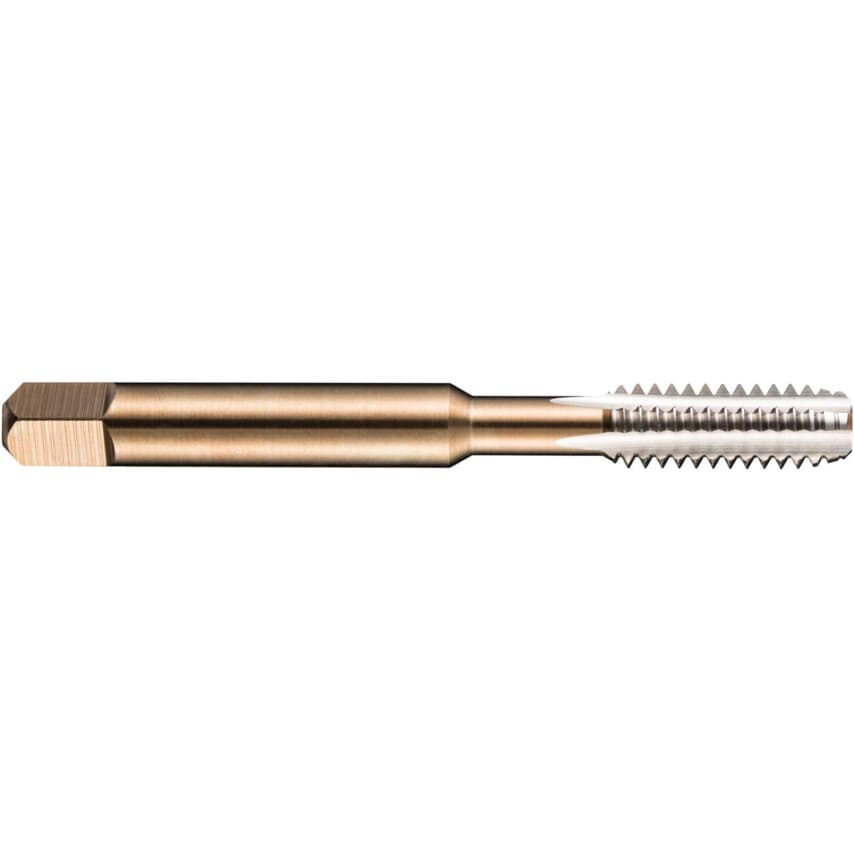

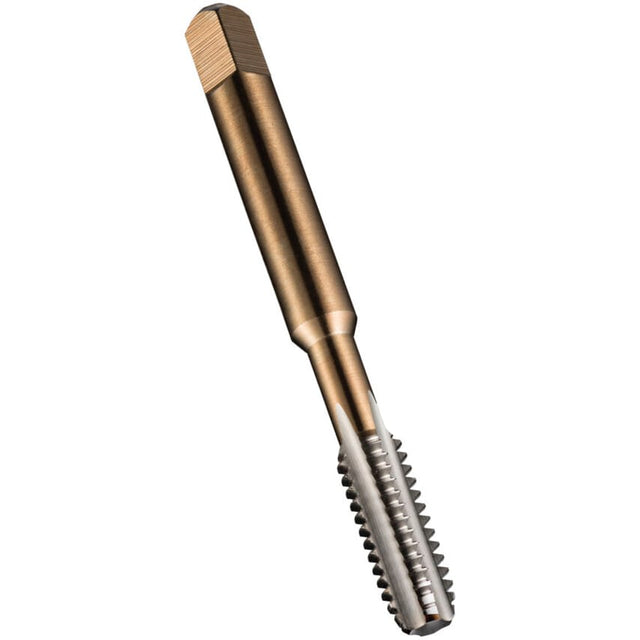

Series E513 HSS Straight Flute No.6 Tap Set
Features and Benefits
Metric Fine
HSS
Bright finish
Straight flute for through or blind holes
1.5xD
Manufactured to ISO 529
Sizes M10 to M25
Contents
Set Includes Taper, Second and Plug Taps
Taper - 7-10 pitch chamfer length
Second - 3-5 pitch chamfer length
Bottoming - 1-2 pitch chamfer length
Typical Applications
Hand or machine taps for use on a wide variety of materials
| MFR Part No. | E513M14X1.5NO6 |
| Standards | ISO 529 |
| ISO Category | K | N | P |
| Thread Size | M14 x 1.5mm |
| Thread Standard | Metric Fine |
| Tap Type | Straight Flute |
| Shank Diameter | 11.2mm |
| Overall Length | 95mm |
| Threading Tap Type | Hand Tap |
| Thread Length | 24mm |
| Finish/Coating | Bright |
| Model Number | E513 |
| Material | HSS |
| Number of Pieces | 3 |
| Square Width | 9mm |
| Series | E513 |
| Finish | Bright |
| Product Type | Tap Set |
| Chamfer | Plug | Second | Taper |
