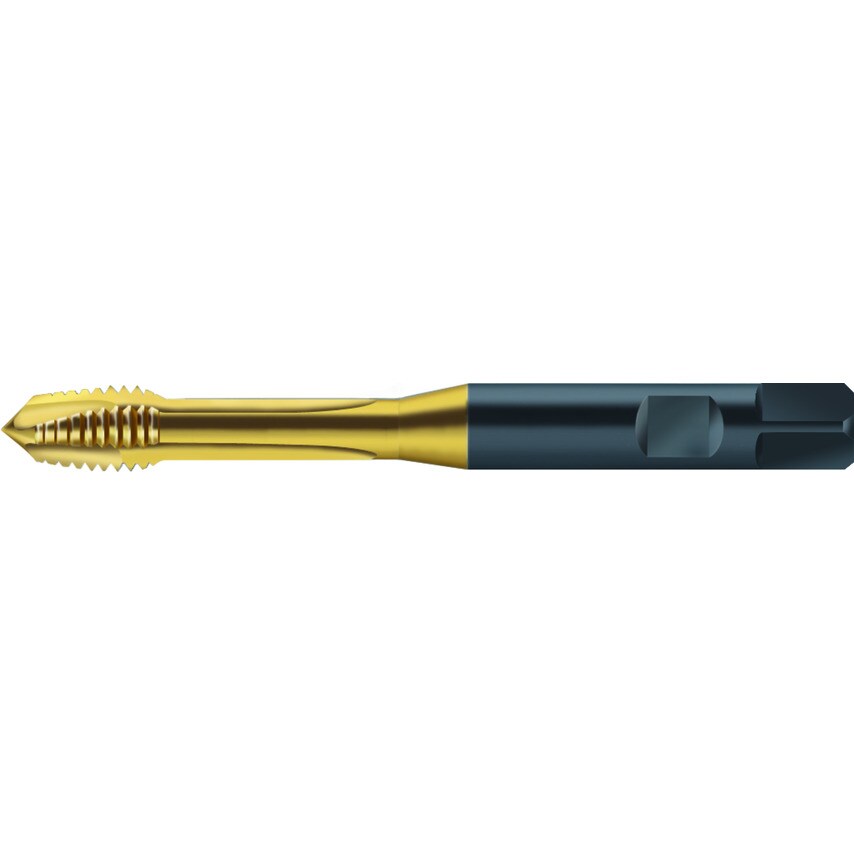

HSS-E machine taps Prototex Synch. B = 3.5-5xTP (plug chamfer) 3xD MF/6HX ~DIN 371 Suitable for through hole TIN MF 14x1.5 P=0.0591in
| Cutting Edge Length | 15mm |
| Shank Diameter | 14mm |
| Tool Designation | S2126305-M14X1.5 |
| Connection Diameter | 14mm |
| Clamping Width | 11mm |
| Usable Length | 49mm |
| Thread Pitch | 1.5mm |
| Thread Size | MF 14x1.5 |
| Number of Grooves | 3 |
| Driving Square Length | 14mm |
| Overall Length | 100mm |
| MFR Part No. | 5101744 |
