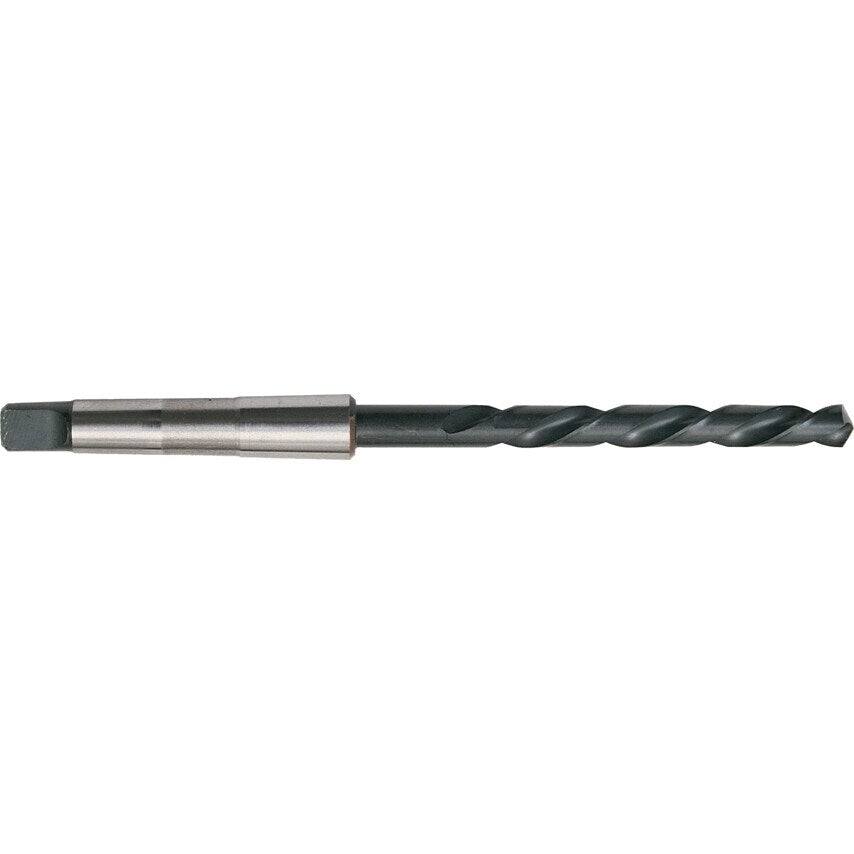

Series 245 HSS Taper Shank Drills
Inch
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, relief angle: normal, tolerance of diameter: h8. Manufacturing Standard: DIN 345.
| Product Type | Drills |
| Flute Length | 160mm |
| Point Angle | 118\u00b0 |
| Drill Diameter | 61/64in |
| Material | HSS |
| Taper Shank Size | MT3 |
| Coolant Delivery | External |
| Series | 245 |
| Finish/Coating | Steam Tempered |
| Overall Length | 281mm |
| Standards Met | DIN 345 |
| MFR Part No. | 00245 024.210 |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Shank Type | Taper Shank |
| Type | 245 |
| Cutting Direction | Right Hand |
