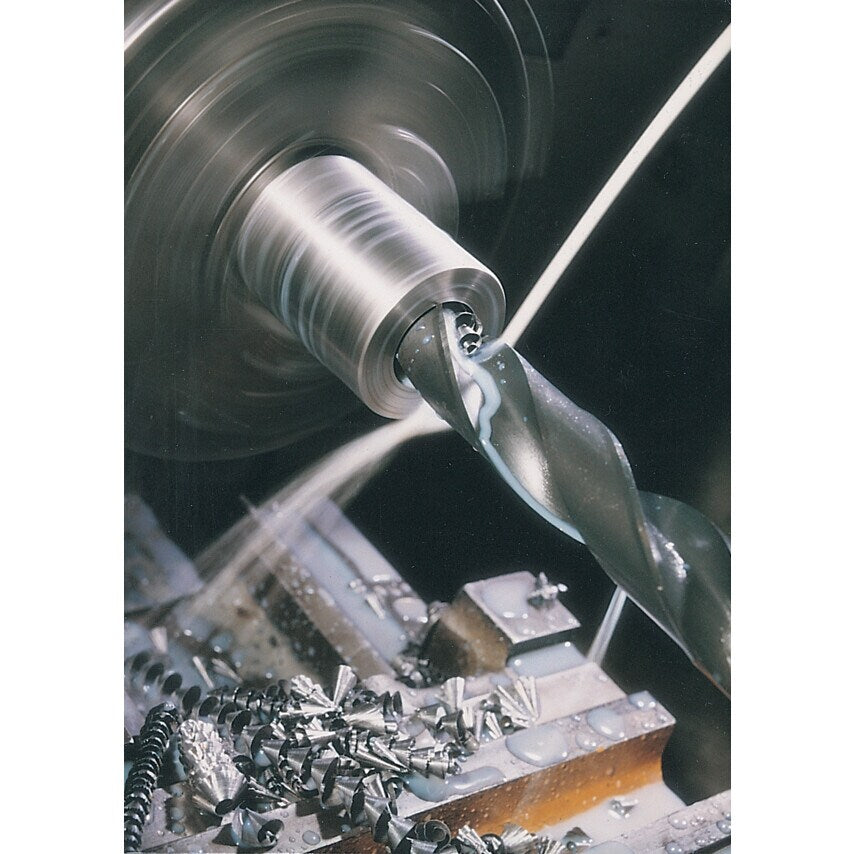

Series T100 HSS taper shank drills are designed to drill steels with a tensile strength up to 1.000 N/mm2 as well as cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
HSS for excellent tool durability
Oxidised finish for excellent heat and wear resistance
Designed to drill steels with a tensile strength up to 1.000 N/mm2
Standards
Manufacturing Standard: DIN 345
| Drill Diameter | 50mm |
| Drill Length Type | Standard Length |
| Series | T100 |
| Size | 50mm |
| Shank Diameter Tolerance | DIN 228 |
| Point Angle | 118\u00b0 |
| Overall Length | 369mm |
| Taper Shank Size | MT4 |
| Finish/Coating | Black Oxide |
| Drill Diameter Metric | 50 |
| Point Type | Thinned Point |
| Product Type | HSS T/S Drill |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Material | HSS |
| Standards Met | DIN 345 |
| Drill Diameter Tolerance | H8 |
| Flute Length | 220mm |
| Helix Angle | Normal |
| Coolant Delivery | External |
