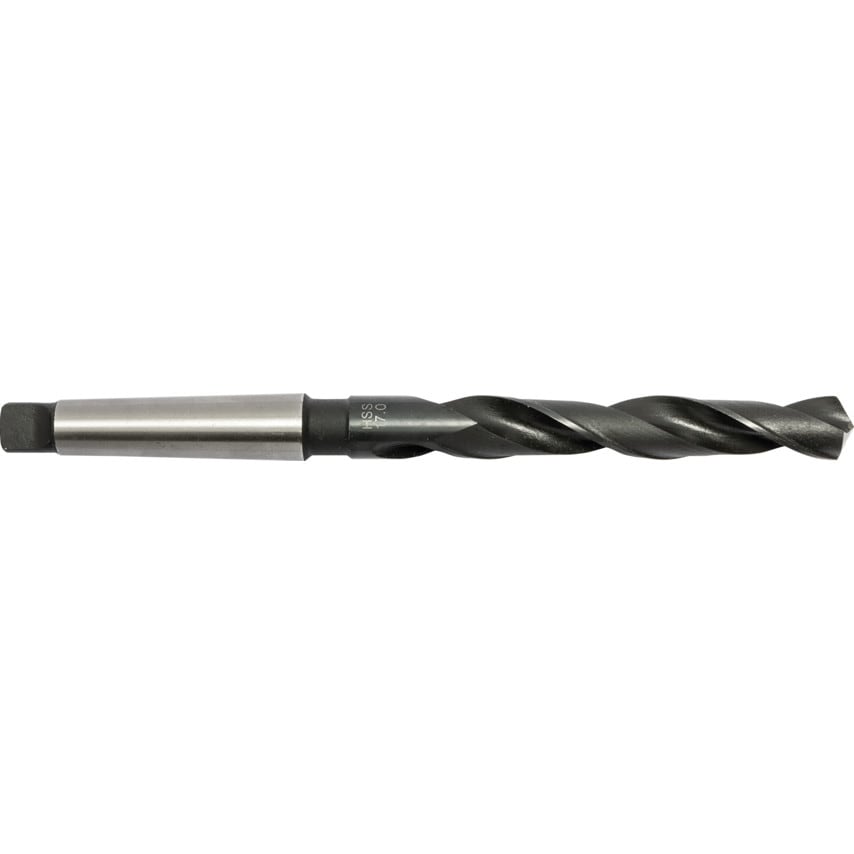

Series T100 HSS taper shank drills are designed to drill steels with a tensile strength up to 1.000 N/mm2 as well as cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
HSS for excellent tool durability
Oxidised finish for excellent heat and wear resistance
Designed to drill steels with a tensile strength up to 1.000 N/mm2
Standards
Manufacturing Standard: DIN 345
| Shank Diameter Tolerance | DIN 228 |
| Product Type | HSS T/S Drill |
| Material | HSS |
| Coolant Delivery | External |
| Point Type | Thinned Point |
| Flute Type | Spiral |
| Standards Met | DIN 345 |
| Taper Shank Size | MT2 |
| Drill Length Type | Standard Length |
| Point Angle | 118\u00b0 |
| Drill Diameter | 17mm |
| Cutting Direction | Right Hand |
| Finish/Coating | Black Oxide |
| Overall Length | 223mm |
| Size | 17mm |
| Helix Angle | Normal |
| Flute Length | 125mm |
| Series | T100 |
| Drill Diameter Tolerance | H8 |
| Drill Diameter Metric | 17 |
