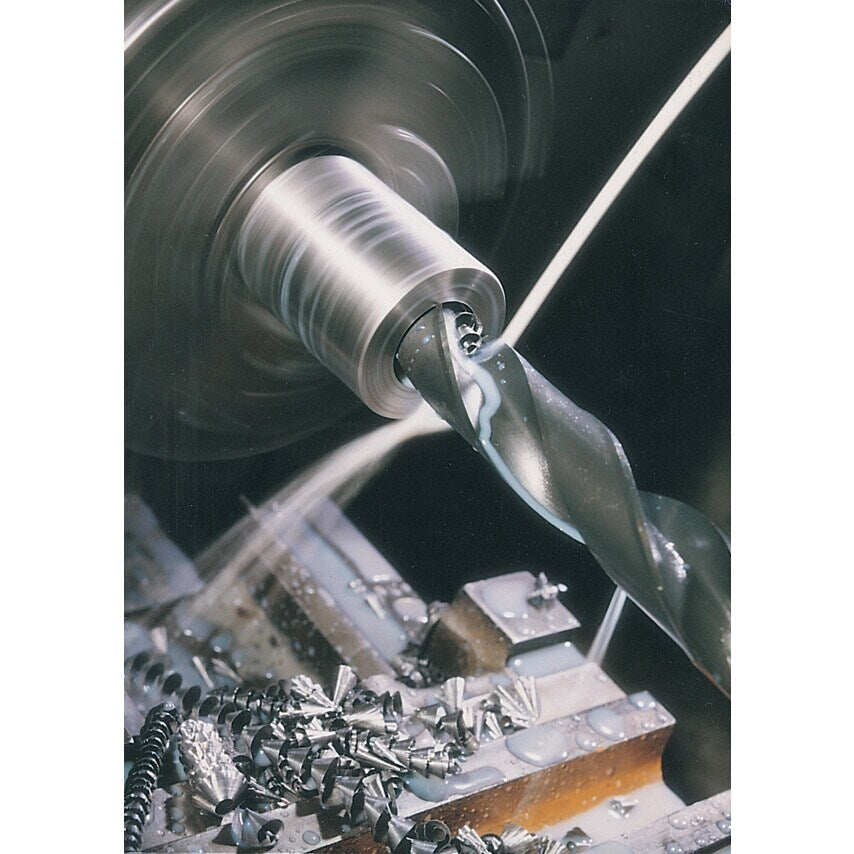

Series T100 HSS taper shank drills are designed to drill steels with a tensile strength up to 1.000 N/mm2 as well as cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
HSS for excellent tool durability
Oxidised finish for excellent heat and wear resistance
Designed to drill steels with a tensile strength up to 1.000 N/mm2
Standards
Manufacturing Standard: DIN 345
| Product Type | HSS T/S Drill |
| Size | 4.2mm |
| Shank Diameter Tolerance | DIN 228 |
| Helix Angle | Normal |
| Overall Length | 123mm |
| Taper Shank Size | MT1 |
| Flute Type | Spiral |
| Finish/Coating | Black Oxide |
| Drill Diameter | 4.2mm |
| Material | HSS |
| Coolant Delivery | External |
| Drill Diameter Metric | 4.2 |
| Drill Length Type | Standard Length |
| Point Angle | 118\u00b0 |
| Cutting Direction | Right Hand |
| Flute Length | 43mm |
| Standards Met | DIN 345 |
| Series | T100 |
| Drill Diameter Tolerance | H8 |
| Point Type | Thinned Point |
