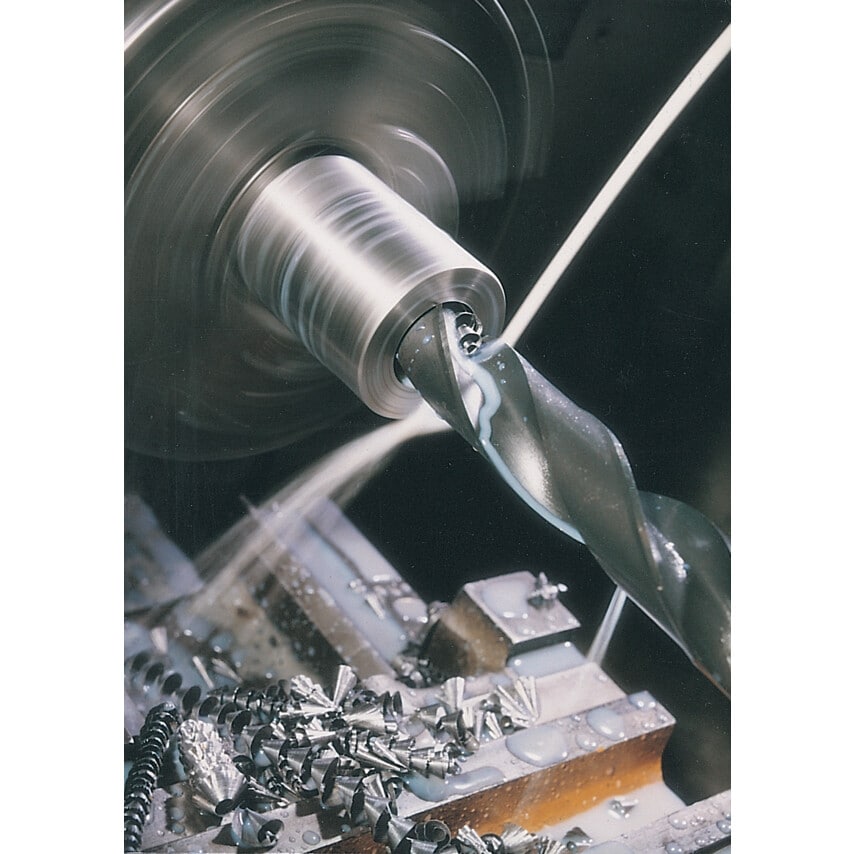

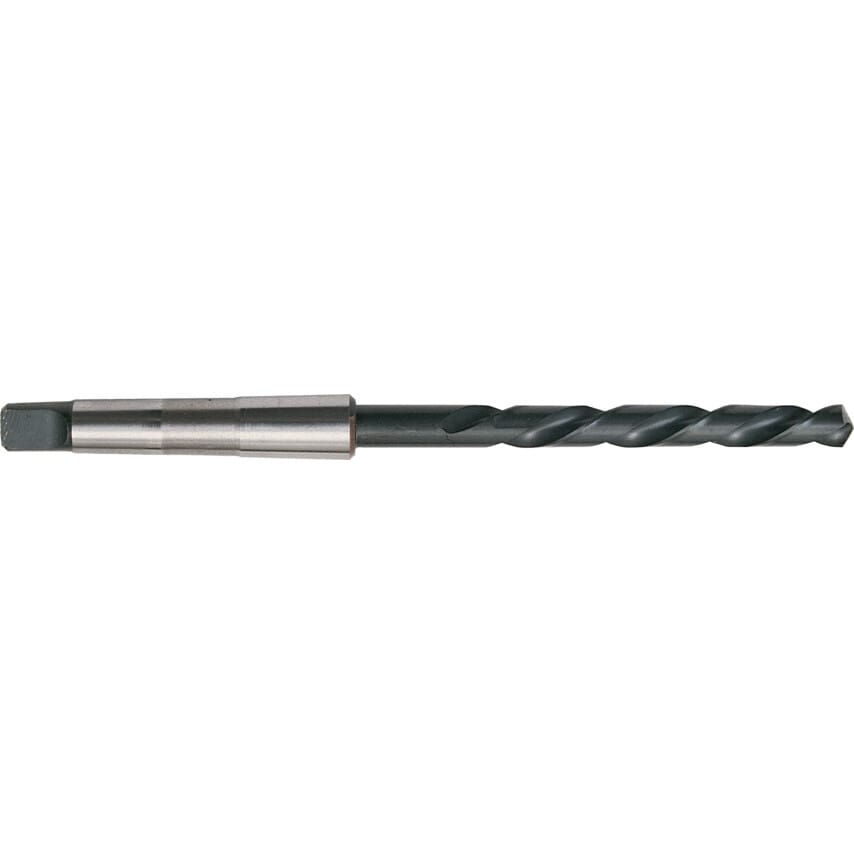

Series T100 HSS taper shank drills are designed to drill steels with a tensile strength up to 1.000 N/mm2 as well as cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
HSS for excellent tool durability
Oxidised finish for excellent heat and wear resistance
Designed to drill steels with a tensile strength up to 1.000 N/mm2
Standards
Manufacturing Standard: DIN 345
| Drill Diameter Tolerance | H8 |
| Shank Diameter Tolerance | DIN 228 |
| Cutting Direction | Right Hand |
| Point Type | Thinned Point |
| Overall Length | 168mm |
| Flute Type | Spiral |
| Helix Angle | Normal |
| Drill Diameter | 10.2mm |
| Drill Length Type | Standard Length |
| Point Angle | 118\u00b0 |
| Standards Met | DIN 345 |
| Finish/Coating | Black Oxide |
| Taper Shank Size | MT1 |
| Coolant Delivery | External |
| Size | 10.2mm |
| Series | T100 |
| Drill Diameter Metric | 10.2 |
| Material | HSS |
| Product Type | HSS T/S Drill |
| Flute Length | 87mm |
