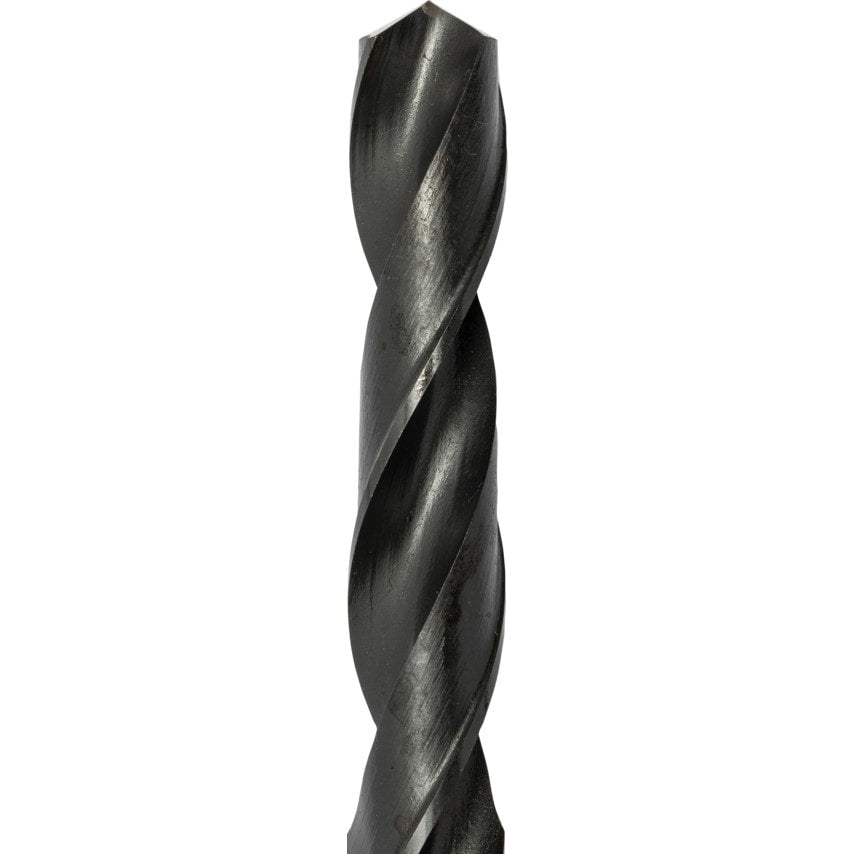

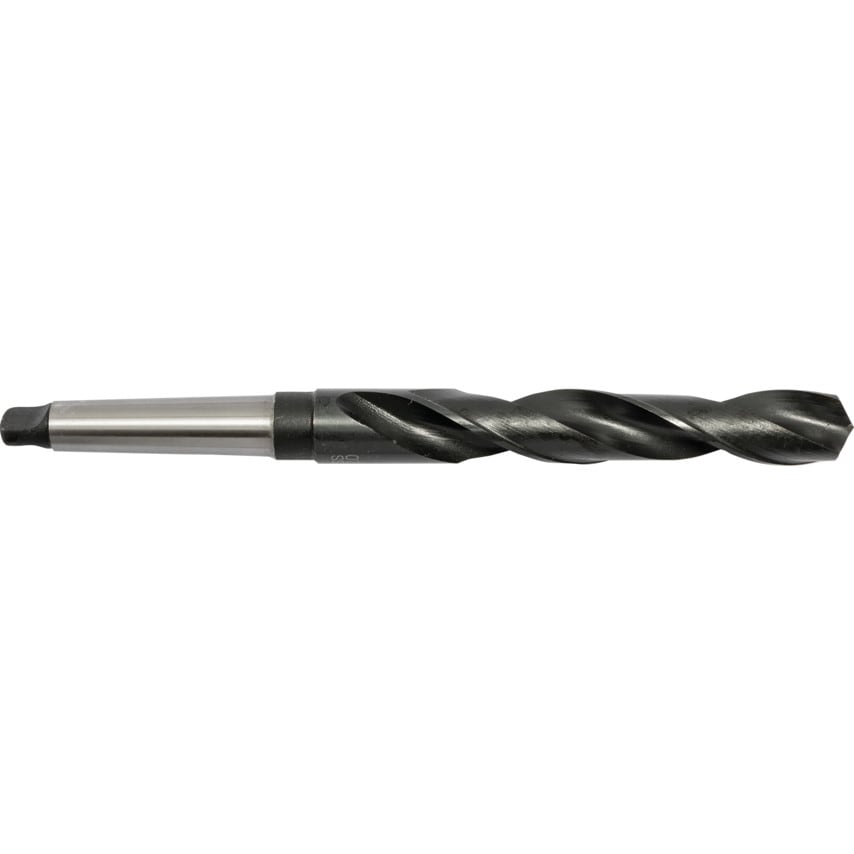

Series T100 HSS taper shank drills are designed to drill steels with a tensile strength up to 1.000 N/mm2 as well as cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
HSS for excellent tool durability
Oxidised finish for excellent heat and wear resistance
Designed to drill steels with a tensile strength up to 1.000 N/mm2
Standards
Manufacturing Standard: DIN 345
| Product Type | HSS T/S Drill |
| Flute Type | Spiral |
| Finish/Coating | Black Oxide |
| Material | HSS |
| Taper Shank Size | MT2 |
| Drill Diameter Tolerance | H8 |
| Series | T100 |
| Point Type | Thinned Point |
| Shank Diameter Tolerance | DIN 228 |
| Drill Length Type | Standard Length |
| Size | 22mm |
| Flute Length | 150mm |
| Helix Angle | Normal |
| Drill Diameter Metric | 22 |
| Coolant Delivery | External |
| Point Angle | 118\u00b0 |
| Cutting Direction | Right Hand |
| Drill Diameter | 22mm |
| Overall Length | 248mm |
| Standards Met | DIN 345 |
