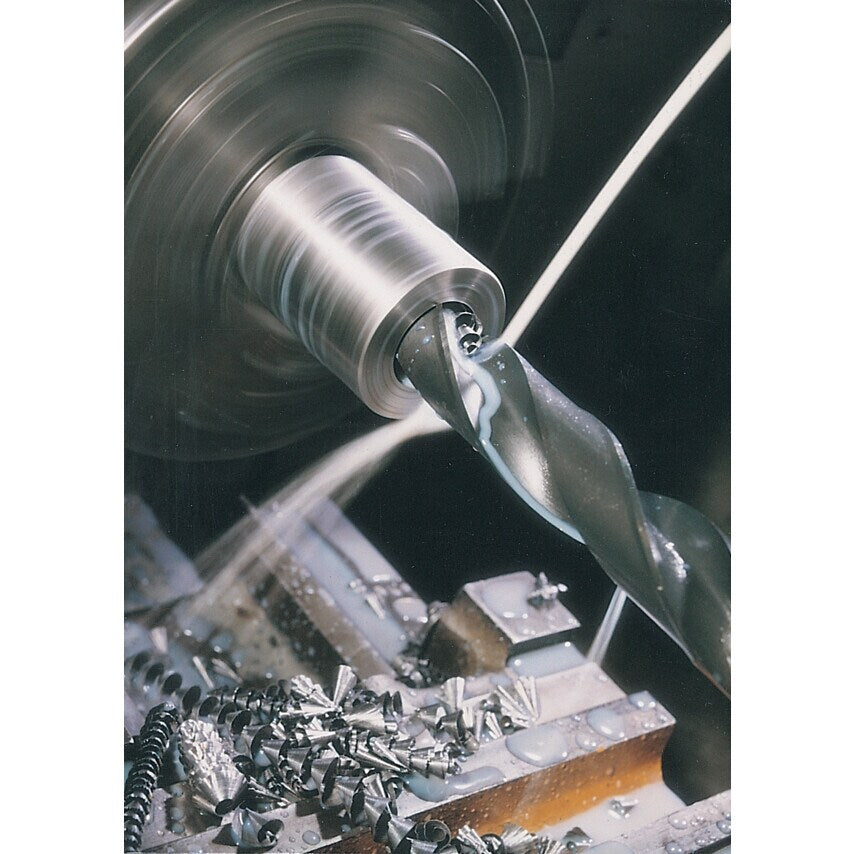

Series T100 HSS taper shank drills are designed to drill steels with a tensile strength up to 1.000 N/mm2 as well as cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
HSS for excellent tool durability
Oxidised finish for excellent heat and wear resistance
Designed to drill steels with a tensile strength up to 1.000 N/mm2
Standards
Manufacturing Standard: DIN 345
| Product Type | HSS T/S Drill |
| Taper Shank Size | MT1 |
| Flute Length | 75mm |
| Drill Diameter | 8.2mm |
| Helix Angle | Normal |
| Shank Diameter Tolerance | DIN 228 |
| Drill Length Type | Standard Length |
| Material | HSS |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Point Type | Thinned Point |
| Coolant Delivery | External |
| Series | T100 |
| Size | 8.2mm |
| Finish/Coating | Black Oxide |
| Overall Length | 156mm |
| Point Angle | 118\u00b0 |
| Drill Diameter Metric | 8.2 |
| Standards Met | DIN 345 |
| Drill Diameter Tolerance | H8 |
