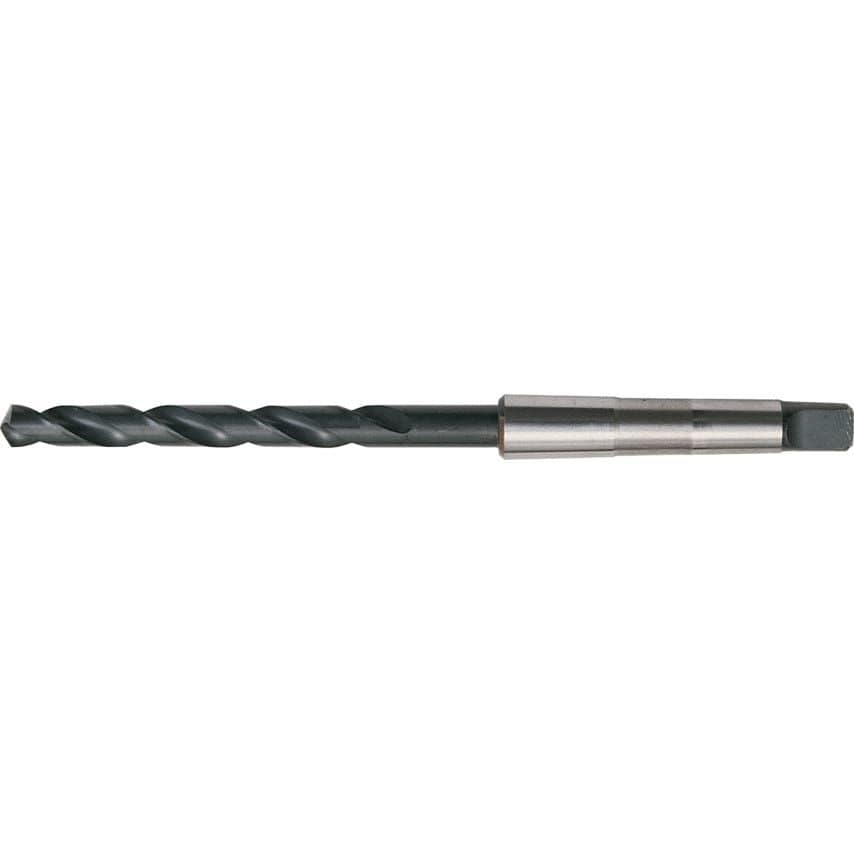

Series A130
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, relief angle: normal, tolerance of diameter: h8. Manufacturing Standard: DIN 345.
| Shank Type | Morse Taper |
| Flute Type | Spiral |
| Depth x Diameter Ratio | 4xD |
| Helix Angle | Normal |
| Spiral Form | Standard Spiral |
| Drill Diameter | 23.5mm |
| Material | HSS |
| Cutting Direction | Right |
| Flute Length | 155mm |
| Taper Shank Size | MT3 |
| Drill Length Type | Standard Length |
| Standards Met | DIN 345 |
| Finish/Coating | Steam Tempered |
| Series | A130 |
| Point Type | Thinned Point |
| Overall Length | 276mm |
| Size | 23.5mm |
| Shank | Morse Taper Shank |
| Point Angle | 118\u00b0 |
| Drill Diameter Tolerance | H8 |
| Unit of Measurement | Metric |
| Finish | Steam Tempered |
| MFR Part No. | A13023.5 |
| Coolant Delivery | External |
| Shank Diameter Tolerance | DIN 228 |
