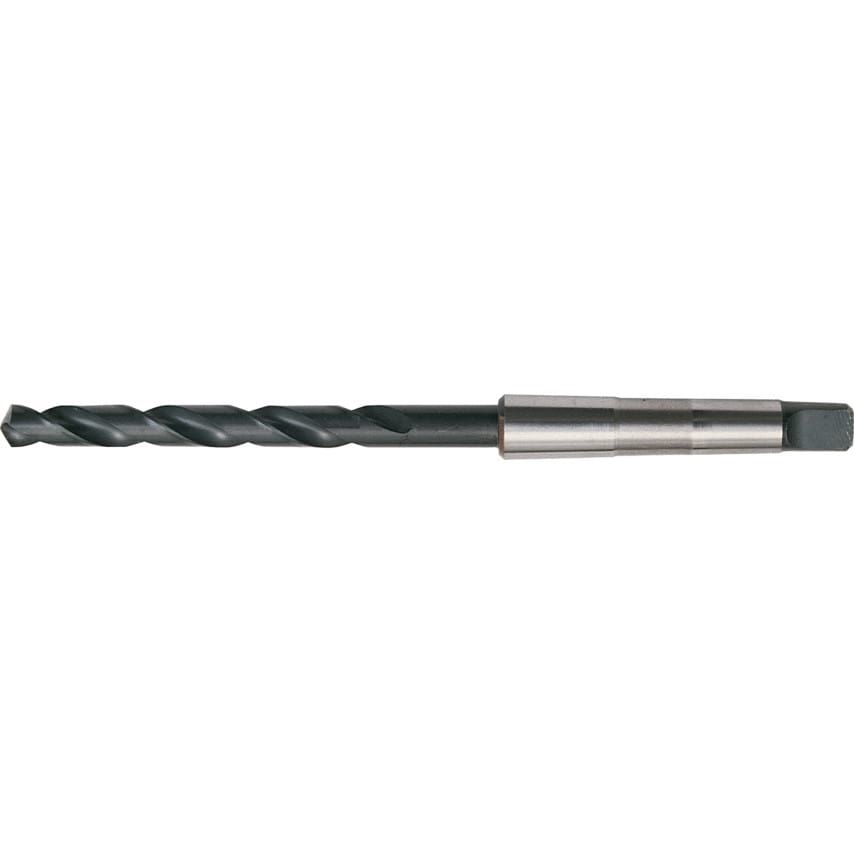

Series A130
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, relief angle: normal, tolerance of diameter: h8. Manufacturing Standard: DIN 345.
| Finish | Steam Tempered |
| Material | HSS |
| Point Angle | 118\u00b0 |
| Unit of Measurement | Metric |
| Cutting Direction | Right |
| Size | 9.5mm |
| Standards Met | DIN 345 |
| Series | A130 |
| Shank | Morse Taper Shank |
| Shank Type | Morse Taper |
| Spiral Form | Standard Spiral |
| Drill Diameter | 9.5mm |
| Shank Diameter Tolerance | H8 |
