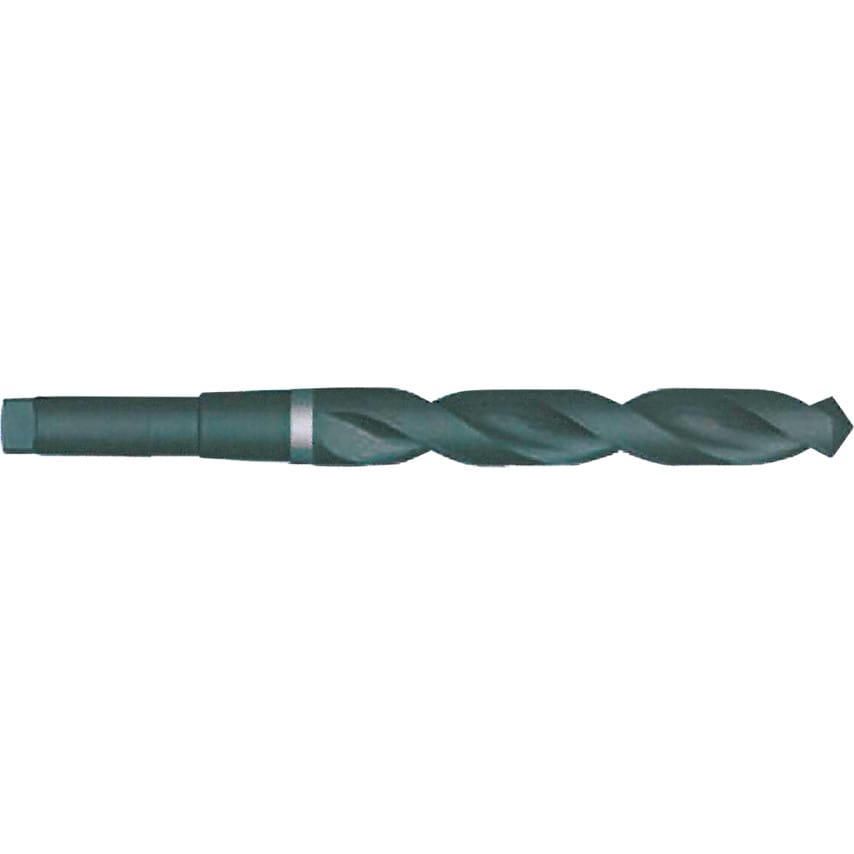

Series A130 HSS Taper Shank Drills - Inch
General-purpose drills to drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, relief angle: normal, tolerance of diameter: h8. Manufacturing Standard: DIN345.
| MFR Part No. | A1309/16 |
| Product Type | Taper Shank Drill |
| Coolant Delivery | External |
| Drill Length Type | Standard Length |
| Point Type | Standard |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Helix Angle | Normal |
| Overall Length | 212mm |
| Cutting Direction | Right Hand |
| Size | 2-100mm |
| Material | HSS |
| Drill Diameter | 9/16in |
| Standards Met | DIN 345 |
| Taper Shank Size | MT2 |
| Flute Length | 114mm |
| Drill Diameter Inch | 9/16 |
| Shank Type | Morse Taper |
| Depth x Diameter Ratio | 4xD |
| Finish/Coating | Steam Tempered |
| Series | A130 |
| Drill Diameter Tolerance | H8 |
