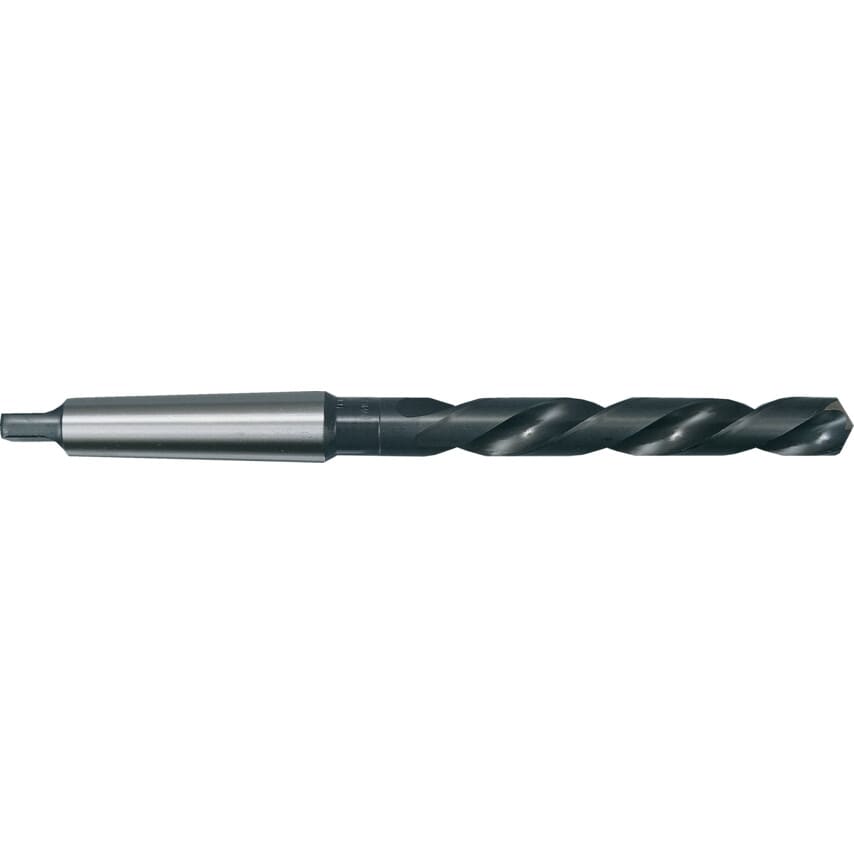

Series 345 HSS-Co Taper Shank Drills - Metric
High heat resistant drill for drilling alloyed and unalloyed steels and castings with a tensile strength over 800N/mm2. Especially suitable for hot and cold rolled steels as well as case hardening and heat treatable steels. Manufactured to Type N DIN 345.
| Flute Length | 140mm |
| Series | 345 |
| Drill Diameter Tolerance | H8 |
| MFR Part No. | 00345 019.500 |
| Diameter | 19.5mm |
| Drill Diameter Metric | 19.5 |
| Drill Length Type | Standard Length |
| Material | Cobalt High Speed Steel |
| Product Type | Drills |
| Drill Diameter | 19.5mm |
| Coolant Delivery | External |
| Flute Type | Spiral |
| Shank Type | Taper Shank |
| Overall Length | 238mm |
| Finish/Coating | Steam Tempered |
| Point Angle | 118\u00b0 |
| Type | Type N DIN345 |
| Cutting Direction | Right Hand |
| Point Type | Web Thinned |
| Standards Met | DIN 345 |
| Taper Shank Size | MT2 |
