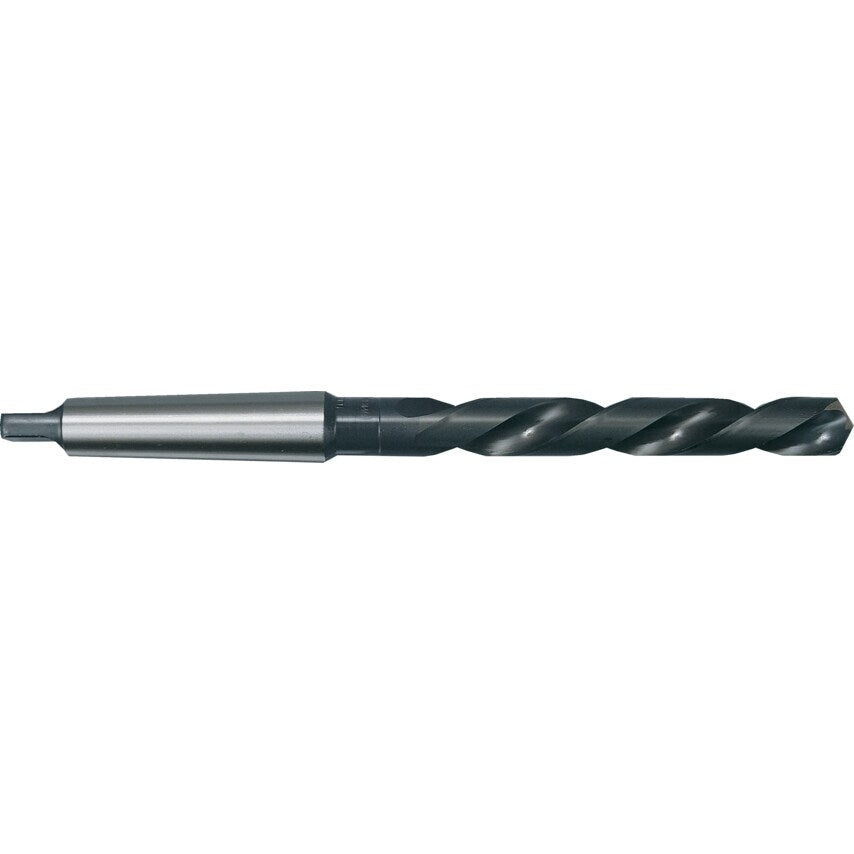

Series 345 HSS-Co Taper Shank Drills - Metric
High heat resistant drill for drilling alloyed and unalloyed steels and castings with a tensile strength over 800N/mm2. Especially suitable for hot and cold rolled steels as well as case hardening and heat treatable steels. Manufactured to Type N DIN 345.
| Diameter | 40mm |
| Material | Cobalt High Speed Steel |
| Overall Length | 349mm |
| Series | 345 |
| Coolant Delivery | External |
| Taper Shank Size | MT4 |
| Product Type | Taper Shank Drill |
| Shank Type | Taper Shank |
| Point Type | Web Thinned |
| Drill Diameter Tolerance | H8 |
| Drill Diameter | 40mm |
| Flute Length | 200mm |
| Drill Length Type | Short Length |
| MFR Part No. | 00345 040.000 |
| Finish/Coating | Steam Tempered |
| Standards Met | DIN 345 |
| Point Angle | 118\u00b0 |
| Cutting Direction | Right Hand |
| Type | HSS-CO |
| Flute Type | Spiral |
