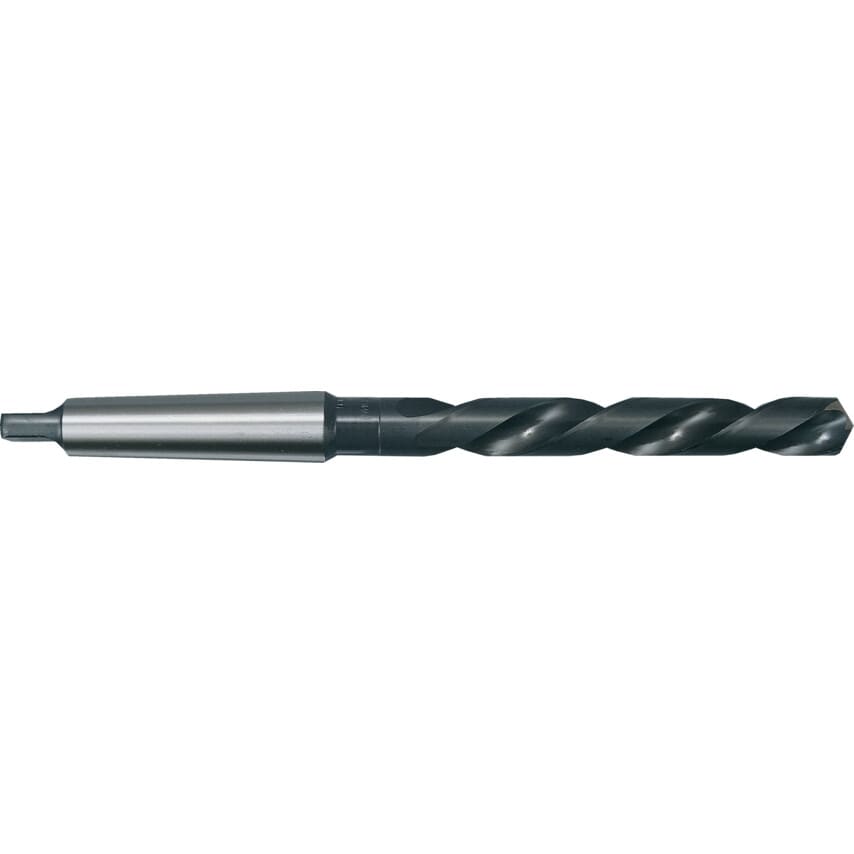

HSS-Co taper shank drills are high heat resistant drill for drilling alloyed and unalloyed steels and castings with a tensile strength over 800N/mm2. Especially suitable for hot and cold rolled steels as well as case hardening and heat treatable steels.
Features and Benefits
High speed steel and cobalt construction for increased durability and hardness
High heat resistance for prolonged tool lifespan
Suitable for use on materials with a maximum tensile strength 800 N/mm2
Standards
DIN 345
| Finish/Coating | Steam Tempered |
| Material | Cobalt High Speed Steel |
| Point Angle | 118\u00b0 |
| Point Type | Web Thinned |
| Taper Shank Size | MT1 |
| Drill Length Type | Standard Length |
| Drill Diameter | 14mm |
| Coolant Delivery | External |
| Flute Type | Spiral |
| Flute Length | 108mm |
| Cutting Direction | Right Hand |
| Standards Met | DIN 345 |
| Drill Diameter Metric | 14 |
| Drill Diameter Tolerance | H8 |
| Overall Length | 189mm |
