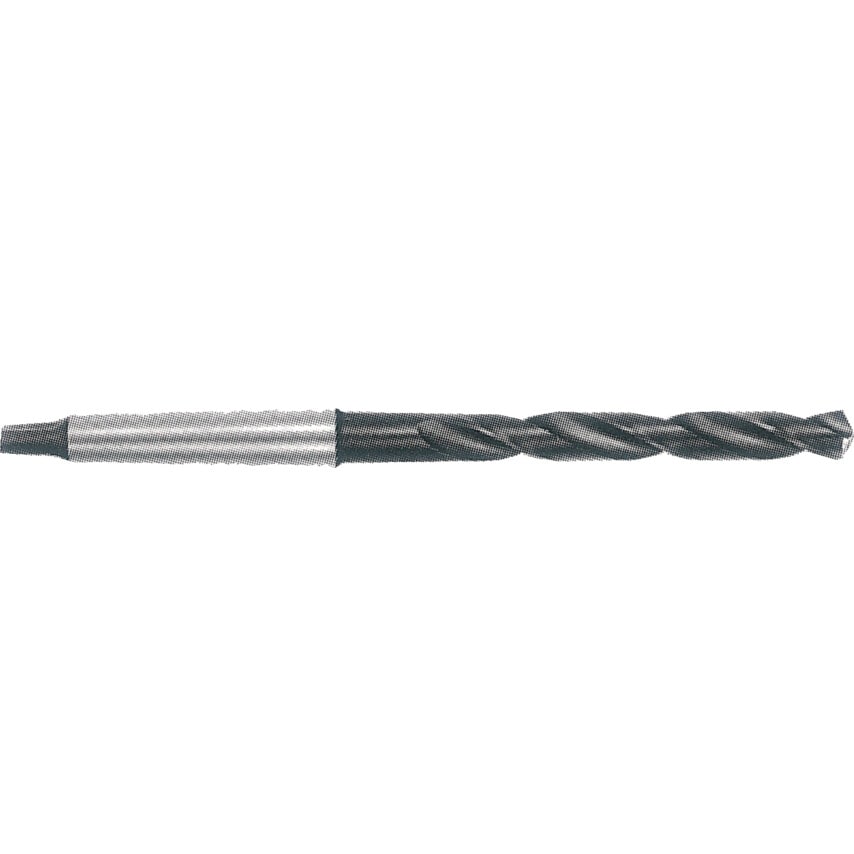

Series 345 HSS-Co Taper Shank Drills - Inch
High heat resistant drill for drilling alloyed and unalloyed steels and castings with a tensile strength over 800N/mm2. Especially suitable for hot and cold rolled steels as well as case hardening and heat treatable steels. Manufactured to Type N DIN345.
| Flute Type | Spiral |
| Overall Length | 182mm |
| Product Type | HSCo Taper Shank Drill |
| Drill Length Type | Standard Length |
| Drill Diameter Tolerance | H8 |
| Point Type | Web Thinned |
| MFR Part No. | 00345 013.100 |
| Finish/Coating | Steam Tempered |
| Drill Diameter | 33/64in |
| Point Angle | 118\u00b0 |
| Taper Shank Size | MT1 |
| Cutting Direction | Right Hand |
| Flute Length | 101mm |
| Material | Cobalt High Speed Steel |
| Standards Met | DIN 345 |
| Coolant Delivery | External |
| Series | 345 |
| Diameter | 13.1mm |
