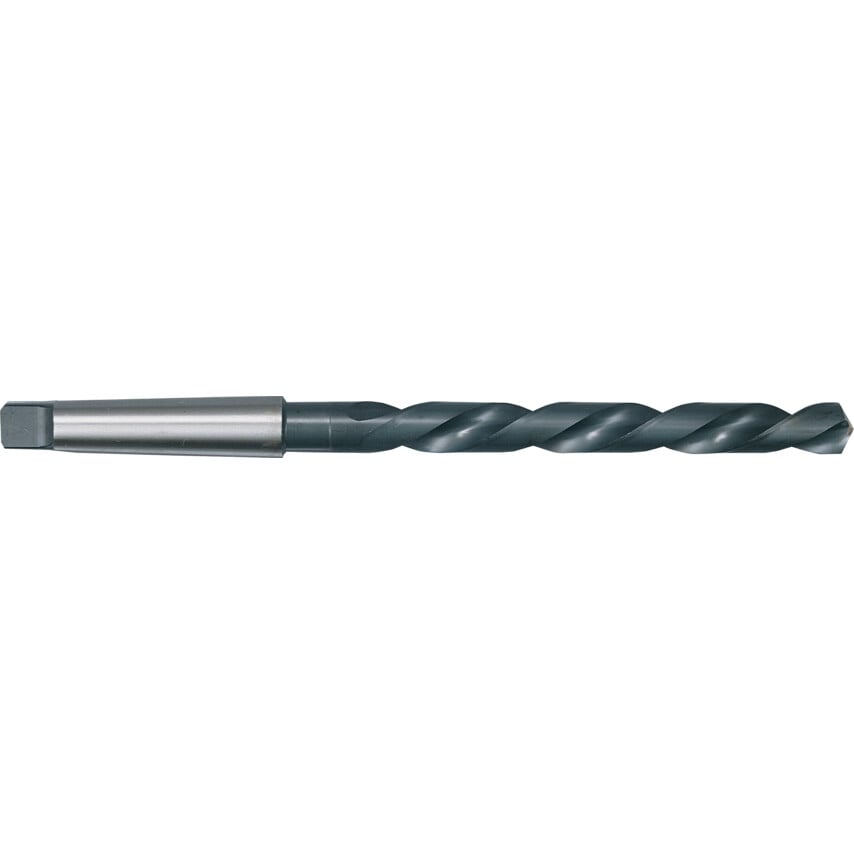

Series 257 HSS Taper Shank Bushing Drills - Metric
Standard drill for use with drill bushings and for deep hole drilling in alloyed and unalloyed steel and cast steel, grey cast iron, malleable cast iron, spheroidal cast iron, sintered powder metals, German silver and graphite. Manufactured to Type N DIN 341.
| Point Angle | 118\u00b0 |
| Diameter | 33.5mm |
| Flute Length | 248mm |
| Standards Met | DIN 341 |
| Finish/Coating | Steam Oxide (Tempered) |
| MFR Part No. | 00257 033.500 |
| Product Type | Bushing Drill |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Drill Diameter | 33.5mm |
| Shank Diameter Tolerance | H8 |
| Point Type | Web Thinned |
| Flute Type | Spiral |
| Drill Length Type | Bushing Length |
| Series | 257 |
| Taper Shank Size | MT4 |
| Overall Length | 397mm |
| Material | HSS |
