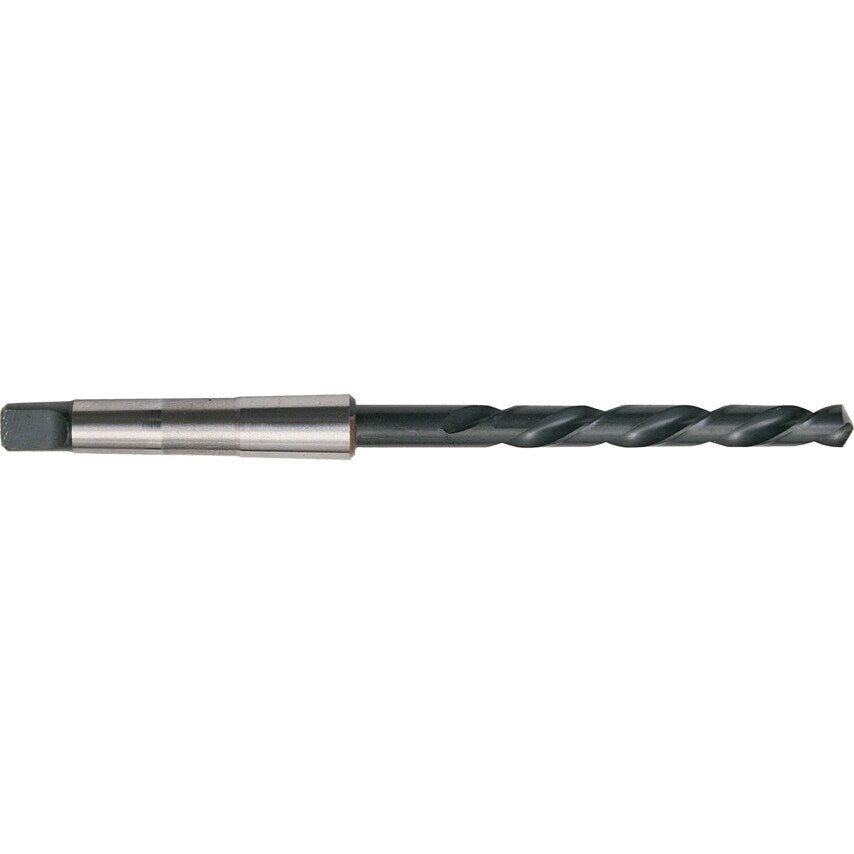

Series 245 HSS Taper Shank Drills
Metric
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, relief angle: normal, tolerance of diameter: h8. Manufacturing Standard: DIN 345.
| Standards Met | DIN 345 |
| Shank Type | Taper Shank |
| Series | 245 |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Finish/Coating | Steam Tempered |
| Cutting Direction | Right Hand |
| Length | 245mm |
| MFR Part No. | 00245 020.640 |
| Taper Shank Size | MT2 |
| Product Type | Taper Shank Drill |
| Coolant Delivery | External |
| Material | HSS |
| Point Angle | 118\u00b0 |
| Type | HSS Taper Shank Drill |
| Flute Length | 145mm |
| Overall Length | 243mm |
