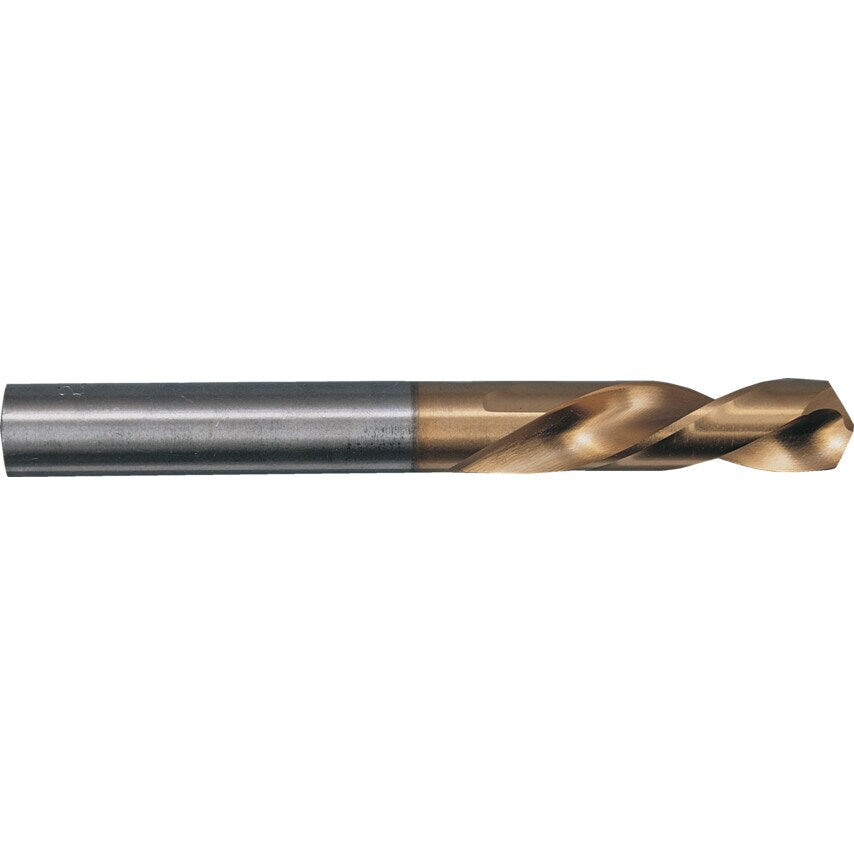

Series 659 HSS-Co Heavy Duty GV120 Straight Shank Stub Drills
TiN Coated - Inch
High heat resistant drill. For use principally in automatic and capstan lathes. For drilling difficult materials such as stainless steel, resisting steel, spring steel and austenitic steel. Manufactured to DIN1897.659.
| Material | Cobalt High Speed Steel |
| Web Thickness | Form A |
| Product Type | Stub Drills |
| MFR Part No. | 00659 006.750 |
| Overall Length | 74mm |
| Point Type | Thinned Point |
| Series | 659 |
| Point Angle | 130\u00b0 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
| Standards Met | DIN 1897 |
| Flute Type | Spiral |
| Flute Length | 34mm |
| Shank Diameter Tolerance | H8 |
| Number of Flutes | 2 |
| Type | Stub S-Drill |
| Flute Construction | Ground flutes |
| Number of Pieces | 1 |
| Coolant Delivery | External |
| Shank Type | Straight |
| Finish/Coating | TiN |
