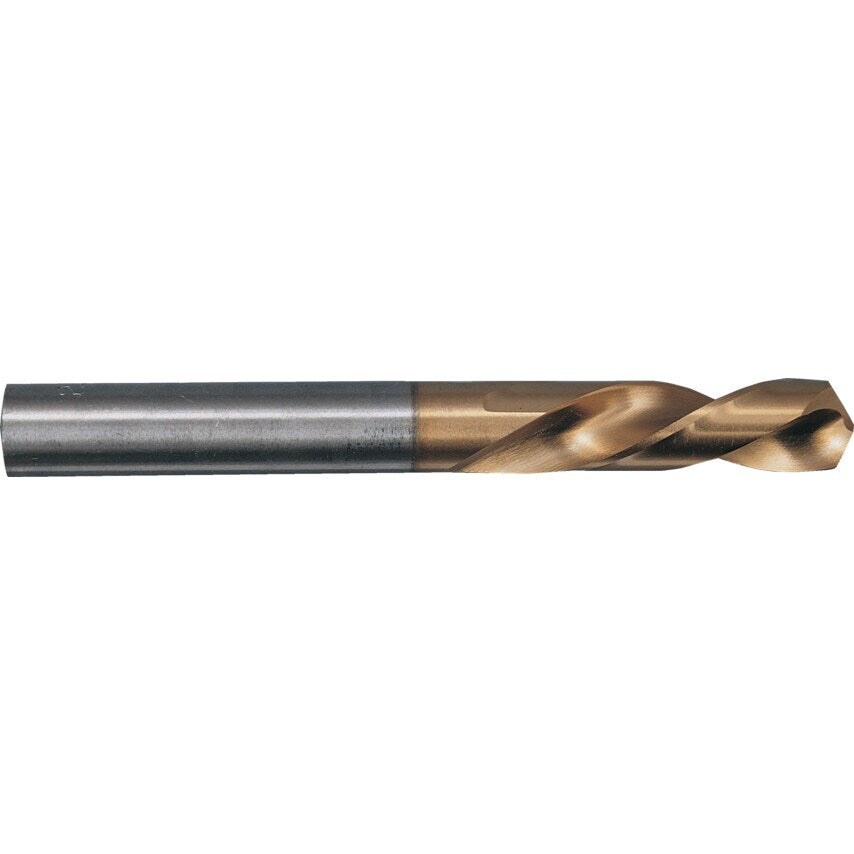

Series 659 HSS-Co Heavy Duty GV120 Straight Shank Stub Drills
TiN Coated - Inch
High heat resistant drill. For use principally in automatic and capstan lathes. For drilling difficult materials such as stainless steel, resisting steel, spring steel and austenitic steel. Manufactured to DIN1897.659.
| Number of Flutes | 2 |
| Shank Diameter Tolerance | H8 |
| Web Thickness | Form A |
| Series | 659 |
| Standards Met | DIN 1897 |
| Point Type | Thinned Point |
| Finish/Coating | TiN |
| Material | Cobalt High Speed Steel |
| Flute Construction | Ground flutes |
| Product Type | Stub Drills |
| Coolant Delivery | External |
| Number of Pieces | 1 |
| Drill Diameter Tolerance | H8 |
| Flute Length | 40mm |
| Point Angle | 130\u00b0 |
| MFR Part No. | 00659 008.730 |
| Type | Stub S-Drill |
| Cutting Direction | Right Hand |
| Overall Length | 84mm |
| Flute Type | Spiral |
| Shank Type | Straight |
