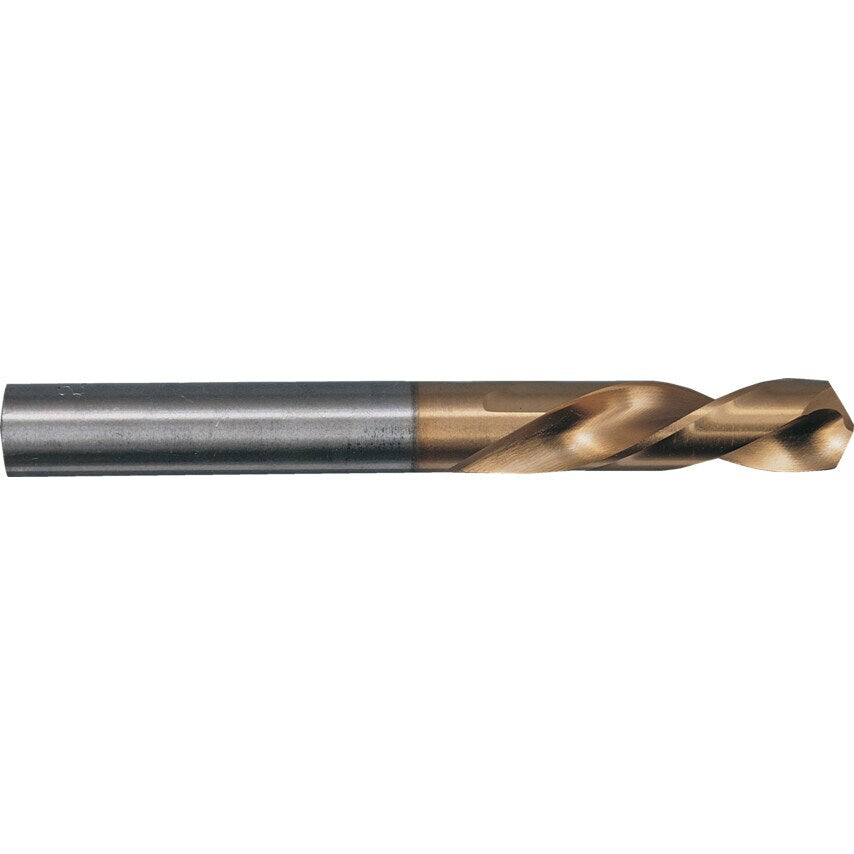

Series 659 HSS-Co Heavy Duty GV120 Straight Shank Stub Drills
TiN Coated - Inch
High heat resistant drill. For use principally in automatic and capstan lathes. For drilling difficult materials such as stainless steel, resisting steel, spring steel and austenitic steel. Manufactured to DIN1897.659.
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Diameter | 1/2in |
| Overall Length | 102mm |
| Material | Cobalt High Speed Steel |
| Shank Diameter Tolerance | H8 |
| Web Thickness | Form A |
| Series | 659 |
| Drill Diameter Tolerance | H8 |
| Flute Length | 51mm |
| Point Angle | 130\u00b0 |
| Flute Construction | Ground flutes |
| Product Type | Stub Drills |
| Flute Type | Spiral |
| Shank Type | Straight |
| Standards Met | DIN 1897 |
| Finish/Coating | TiN |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Type | Stub S-Drill |
| Point Type | Thinned Point |
| MFR Part No. | 00659 012.700 |
