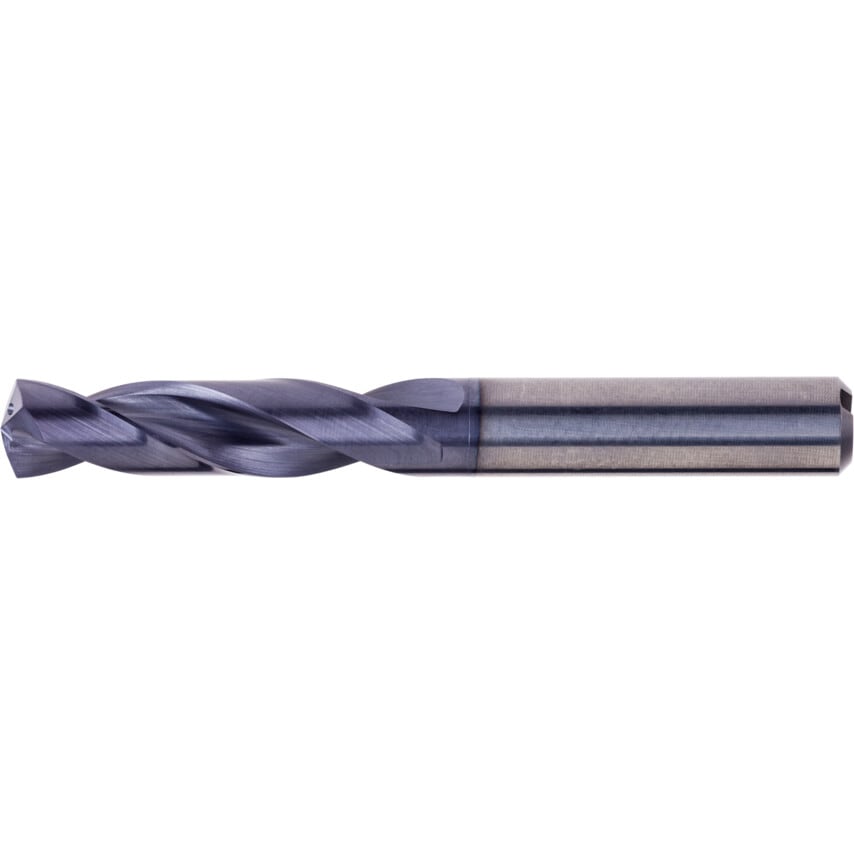

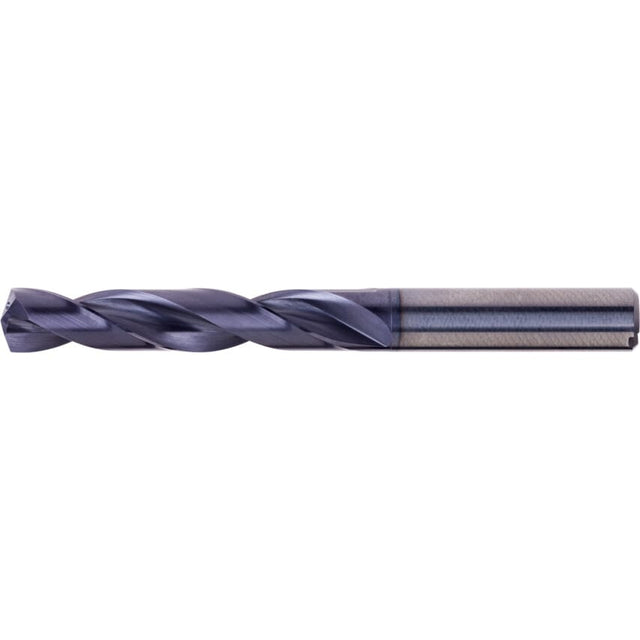

The Dormer Carbide TiAlN Drill, a high-performance tool designed for precision drilling, features a solid carbide construction with a Titanium Aluminum Nitride (TiAlN) coating. With a 5 times diameter (5 x D) reach and through coolant capabilities, this drill is optimized for efficiency and accuracy. The 140 self-centering point enhances precision during drilling operations. Tailored for use in Stainless Steels and Heat Resistant Materials, this drill excels at producing high-quality holes at elevated speeds and feeds. Whether it's demanding industrial applications or tasks requiring intricate and reliable drilling in challenging materials, the Dormer Carbide TiAlN Drill stands out as a versatile and dependable solution, contributing to enhanced machining performance.Features and Benefits Premium carbide material - specifically designed for drilling stainless steel and other heat resistant super alloys High performance drill - capable of producing high quality and accurate holes even at high speeds and feeds (h9 hole tolerance) Dormer R467 Solid Carbide TiAlN Coated Force-M Coolant Feed 3xD Drill Bit with 140 degree 4-Facet split point, designed for high performance drilling
| MFR Part No. | 7625049 |
| Overall Length | 118mm |
| Drill Length Type | Long Series |
| Cutting Direction | Right |
| Flute Length | 70 |
| Flute Type | Cylindrical shank DIN 6535 HA |
| Finish/Coating | TiAlN |
| Material | Carbide |
| System of Measurement | Metric |
| Series | Carbide TiAlN |
| Standards Met | DIN 6535 HA |
| Coolant Delivery | Coolant Through |
| Number of Pieces | 1 |
| Point Angle | 140\u00b0 |
| Shank Diameter Tolerance | 12 |
| Product Type | Drills |
