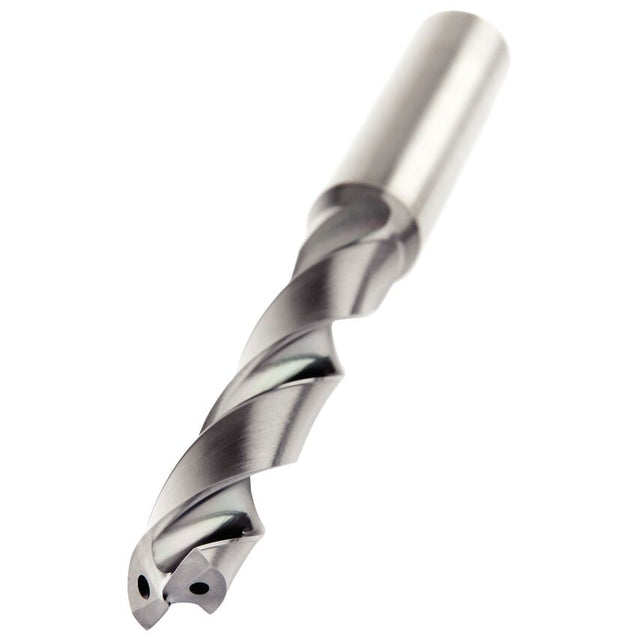

HPX B225 5 x D Through CoolantHigh-Performance Solid Carbide Drills
| Number of Flutes | 2 |
| Material | Carbide |
| Overall Length | 91mm | 91.0000mm |
| Finish/Coating | TiN/AlTiN |
| MFR Part No. | 6781849 |
| Drill Diameter | 6.8000mm |
| Flute Construction | Helical Flute |
| Coolant Diameter | 1.1200mm (0.0390in) |
| Helix Angle | 28.105 |
| Adapter Style | Straight-Cylindrical |
| Shank Length | 36.0000mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Coolant Supplied | Yes |
| Helix Type | Right Hand Helix/Flute |
| Drill Point | 1.48mm |
| Drill Depth | 43mm | 43.0000mm |
| Primary Material | Steel |
| Unit Measured | Metric |
| Hand Preference | Right |
| Functional Length | 89.5200mm |
| Flute Length | 53mm | 53.0000mm |
| Assembly Length | 62.52mm |
| Adapter Type | Cylindrical |
| Adapter / Shank / Bore Diameter | 8.0000mm |
