Proto save
£4.39
Loading...

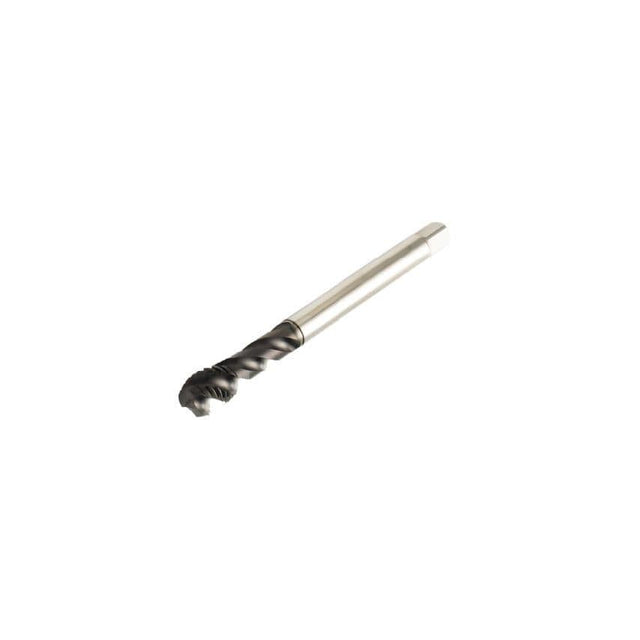

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Thread Tolerance Class | 6HX |
| Thread Pitch | 1.5mm |
| Connection Diameter | 40mm |
| Coolant Exit Style | 0 |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Weight | 114g |
| Basic Standard Group | DIN 374 |
| MFR Part No. | 26162463 |
| Thread Diameter Size | MF 18x1.5 |
| Blind Hole Function Property | Yes |
| CoroPak | 12.1 |
| Usable Length | 66mm |
| Functional Length | 110mm |
| Coolant Entry Style | Without Coolant |
| Coating Type | TiAlN |
