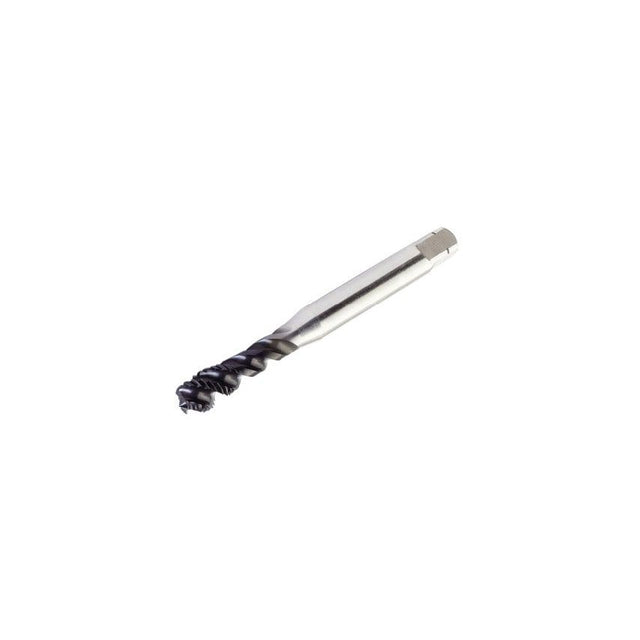

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Connection Diameter | 63mm |
| Through Hole Function Property | Yes |
| Blind Hole Function Property | Yes |
| Coolant Entry Style | 1 |
| Weight | 0.22kg |
| Functional Length | 140mm |
| Coolant Exit Style | 1 |
| Usable Length | 93mm |
| Thread Tolerance Class | 6HX |
| Thread Diameter Size | M 22 |
| MFR Part No. | 26162406 |
| CoroPak | 12.1 |
| Thread Pitch | 2.5mm |
| Basic Standard Group | DIN 376 |
