Product Range: CoroTap 400Tool Type: TappingCoroTap 400 is a high-speed, chip-free forming tap suitable for both through- and blind-holes in steel, stainless steel, aluminium and HRSAs. Versatile and optimized forming taps are available, with and without oil grooves, in an assortment of diameters, grades, coatings and thread forms to suit a range of applications.Features & Benefits- Forming taps for through holes and blind holes- Available in many thread forms and standards- Depths up to 3.5 diameter- To ensure low friction at high speeds for precision thread forming with minimal surface roughness, there are five coatings available: TiCN, TiN, TiNF, CrN and Bright (uncoated)
| Basic Standard Group | DIN/ANSI |
| Finish/Coating | TiN |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Threads Per Inch | 16 |
| Coating Type | TiN |
| Thread Diameter Size | UNF 3/4-16 |
| Unit Measured | Imperial |
| Tap Type | Fluteless |
| Functional Length | 125mm |
| Thread Size | 3/4 UNF |
| CoroPak | 11.2 |
| Material | HSS-PM |
| Finish | TiN |
| Connection Diameter | 19.3mm |
| Thread Pitch | 16 |
| Coating Process Type | PVD |
| Usable Length | 77.5mm |
| Thread Tolerance Class | 2B |
| Coolant Exit Style | 0 |

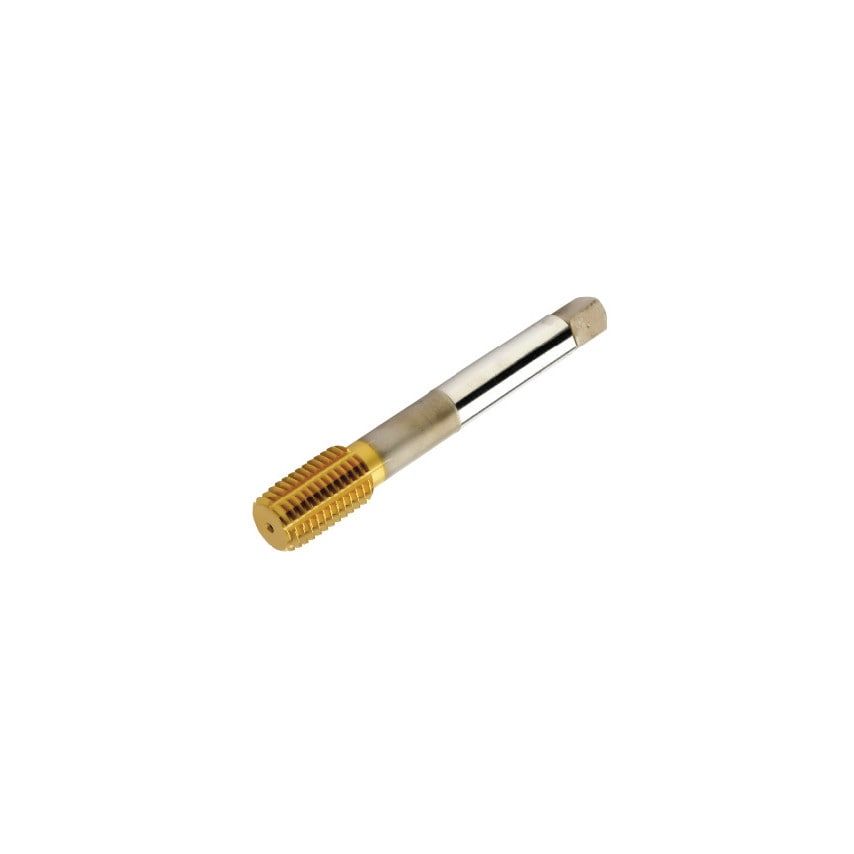

| Product Type | CoroTap 400 forming tap |
| MFR Part No. | 26181527 |
| Weight | 0.19kg |
