Product Range: CoroTap 400Tool Type: TappingCoroTap 400 is a high-speed, chip-free forming tap suitable for both through- and blind-holes in steel, stainless steel, aluminium and HRSAs. Versatile and optimized forming taps are available, with and without oil grooves, in an assortment of diameters, grades, coatings and thread forms to suit a range of applications.Features & Benefits- Forming taps for through holes and blind holes- Available in many thread forms and standards- Depths up to 3.5 diameter- To ensure low friction at high speeds for precision thread forming with minimal surface roughness, there are five coatings available: TiCN, TiN, TiNF, CrN and Bright (uncoated)
| Material | HSSE |
| Thread Size | 1mm |
| Finish/Coating | TiN |
| ISO Cutting Tool Material | HSS >=4 |
| Coolant Exit Style | 0 |
| Tap Type | Fluteless |
| MFR Part No. | 26181387 |
| Basic Standard Group | DIN 2174 |
| Thread Pitch | 1mm |
| Connection Diameter | 65.46mm |
| CoroPak | 11.2 |
| Coating Type | TiN |
| Coating Process Type | PVD |
| Finish | TiN |
| Coolant Entry Style | Without Coolant |

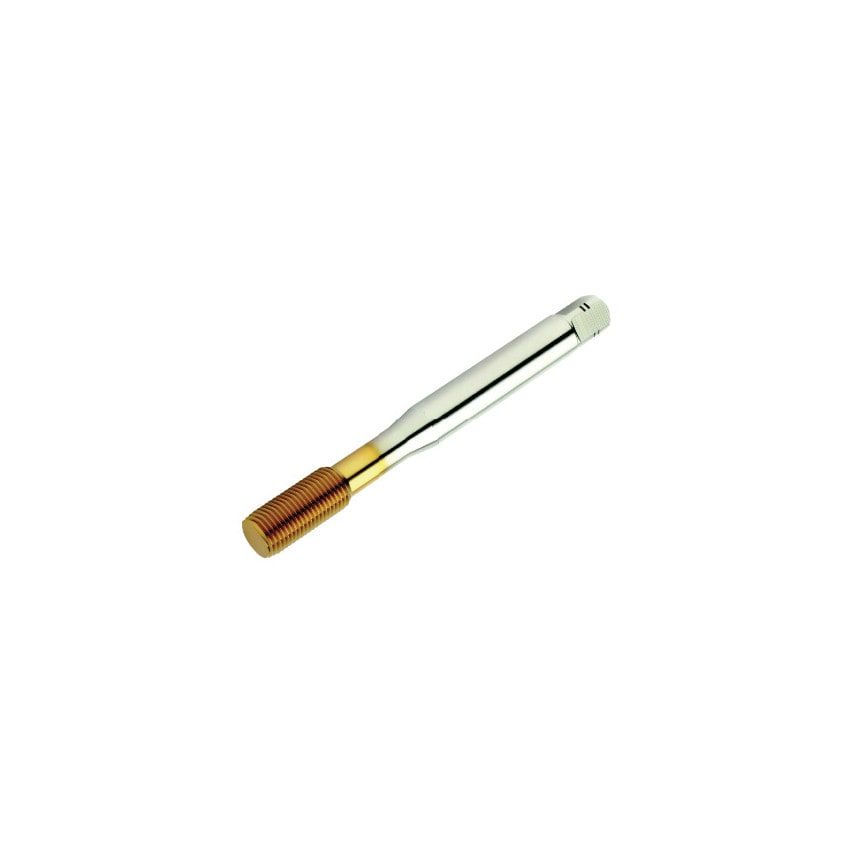

| Product Type | CoroTap 400 forming tap |
| Unit Measured | Metric |
| Thread Tolerance Class | 6HX |
| Through Hole Function Property | Yes |
| Functional Length | 100mm |
| Thread Diameter Size | MF 10x1 |
| Usable Length | 75mm |
