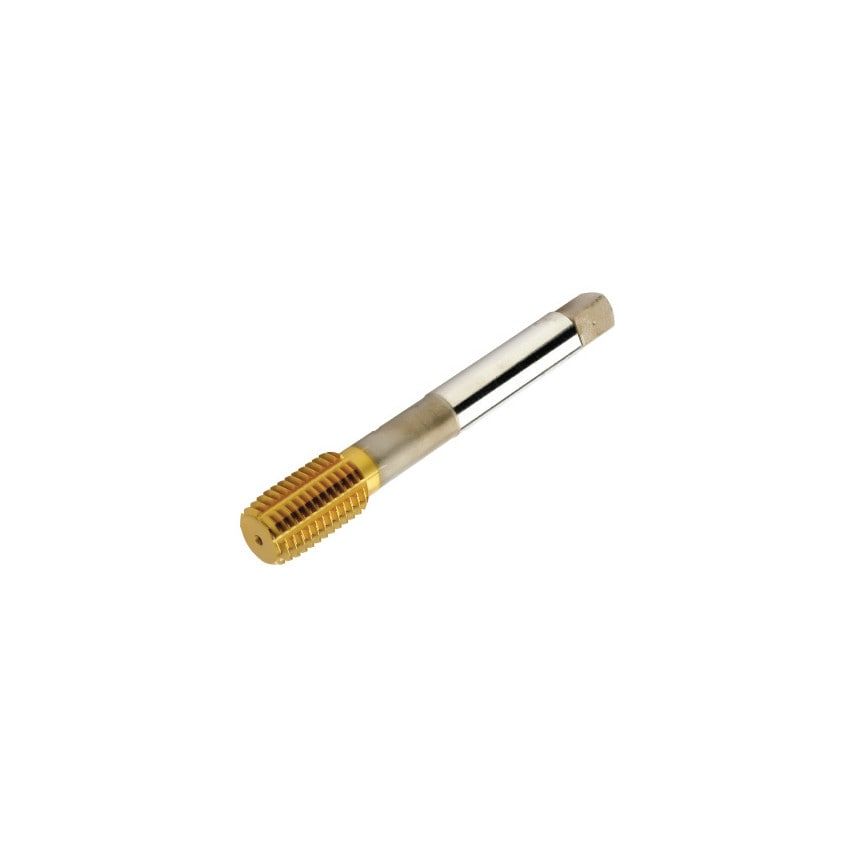

Product Range: CoroTap 400Tool Type: TappingCoroTap 400 is a high-speed, chip-free forming tap suitable for both through- and blind-holes in steel, stainless steel, aluminium and HRSAs. Versatile and optimized forming taps are available, with and without oil grooves, in an assortment of diameters, grades, coatings and thread forms to suit a range of applications.Features & Benefits- Forming taps for through holes and blind holes- Available in many thread forms and standards- Depths up to 3.5 diameter- To ensure low friction at high speeds for precision thread forming with minimal surface roughness, there are five coatings available: TiCN, TiN, TiNF, CrN and Bright (uncoated)
| Usable Length | 113mm |
| Coating Process Type | PVD |
| Coating Type | TiN |
| CoroPak | 11.2 |
| Unit Measured | Metric |
| Product Type | CoroTap 400 forming tap |
| Basic Standard Group | DIN 2174 |
| Connection Diameter | 18mm |
| Thread Diameter Size | M 24 |
| Finish | TiN |
| Material | HSSE |
| Thread Pitch | 3mm |
| Thread Tolerance Class | 6HX |
| Weight | 0.35kg |
| Tap Type | Fluteless |
| MFR Part No. | 26182077 |
| Coolant Exit Style | 0 |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | HSS >=4 |
| Functional Length | 160mm |
| Finish/Coating | TiN |
| Coolant Entry Style | Without Coolant |
| Thread Size | M24 x 3.00 |
