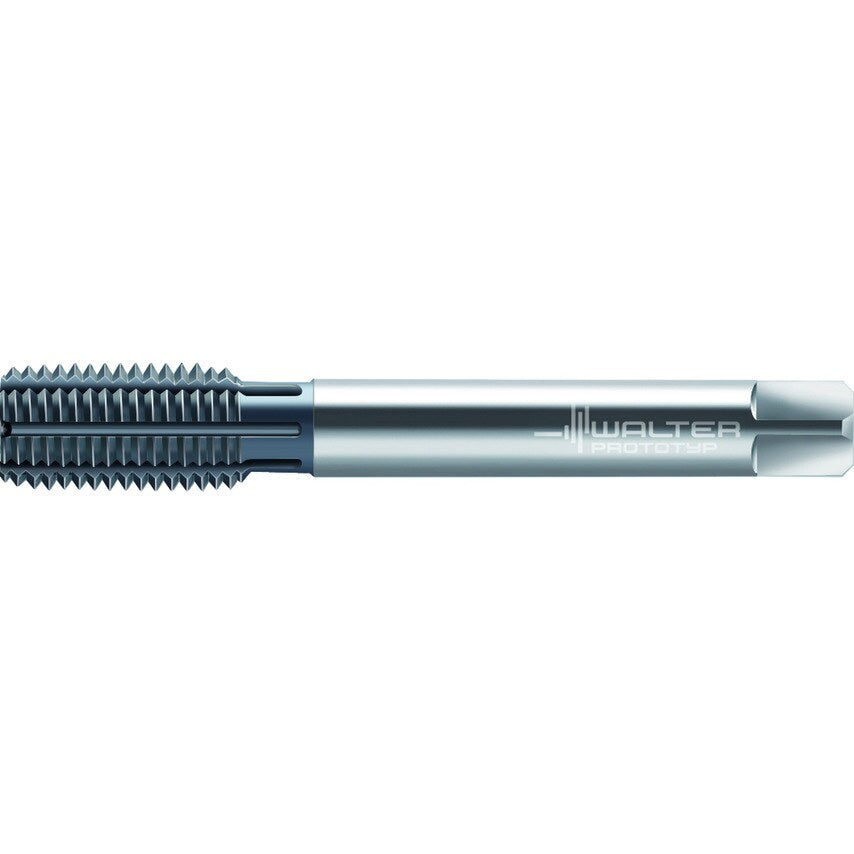

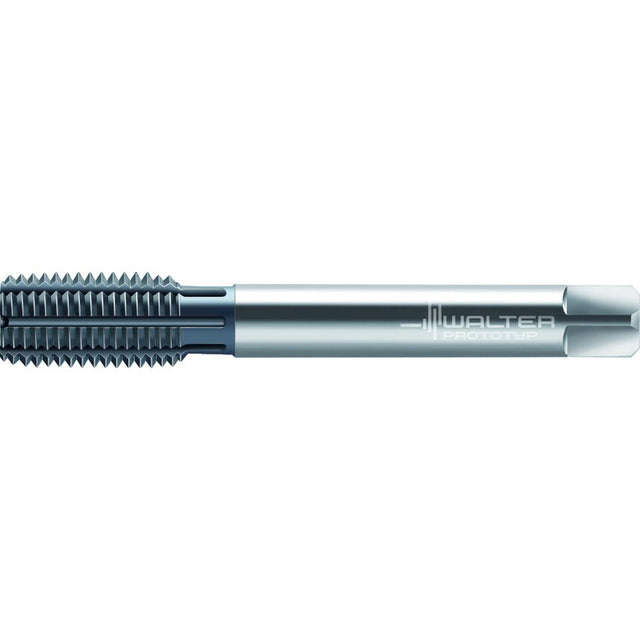

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD MF/6HX DIN 2174 Suitable for blind hole WW60BA Suitable for through hole MF 14x1.5 P=0.0591in
| Thread Pitch | 1.5mm |
| Number of Grooves | 6 |
| Cutting Edge Length | 15mm |
| Functional Length | 100mm |
| Driving Square Length | 12mm |
| Usable Length | 71mm |
| Tool Designation | TC420-M14X1.5-L2-WW60BA |
| Clamping Width | 9mm |
| Thread Size | MF 14x1.5 |
| MFR Part No. | 7427476 |
| Connection Diameter | 11mm |
