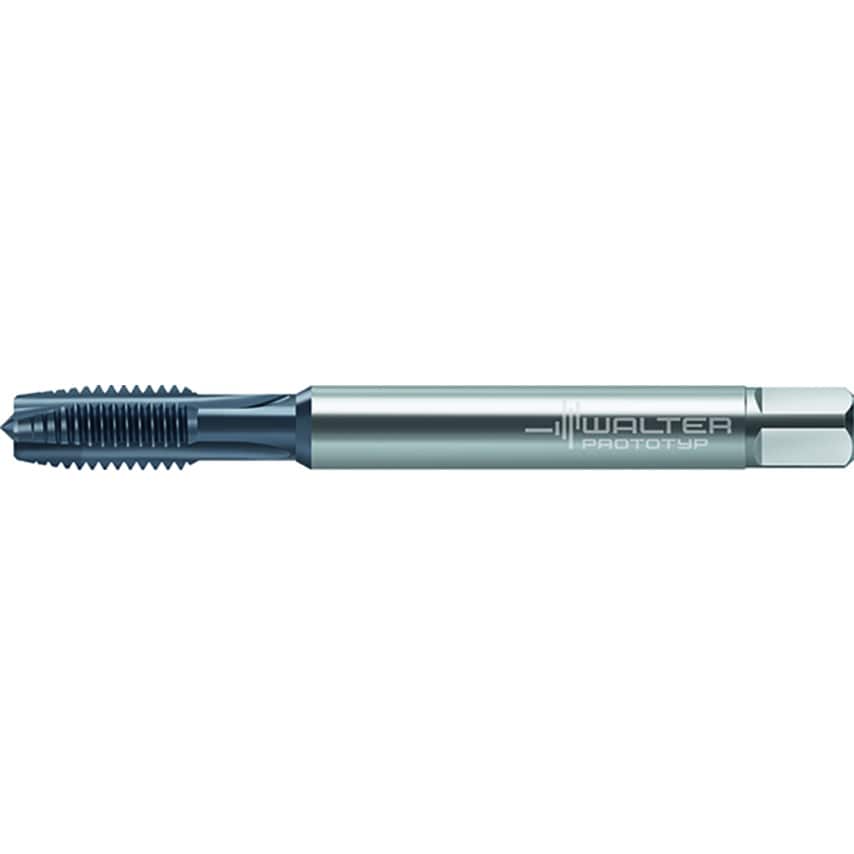

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD UNF/2B ~DIN 2184-1 Suitable for through hole TICN UNF 3/8-24 P=24
| Overall Length | 100mm |
| Clamping Width | 8mm |
| Tool Designation | 2321706-UNF3/8 |
| Driving Square Length | 11mm |
| Number of Grooves | 3 |
| Usable Length | 33.5mm |
| MFR Part No. | 7511588 |
| Thread Size | UNF 3/8-24 |
| Shank Diameter | 10mm |
| Cutting Edge Length | 20mm |
