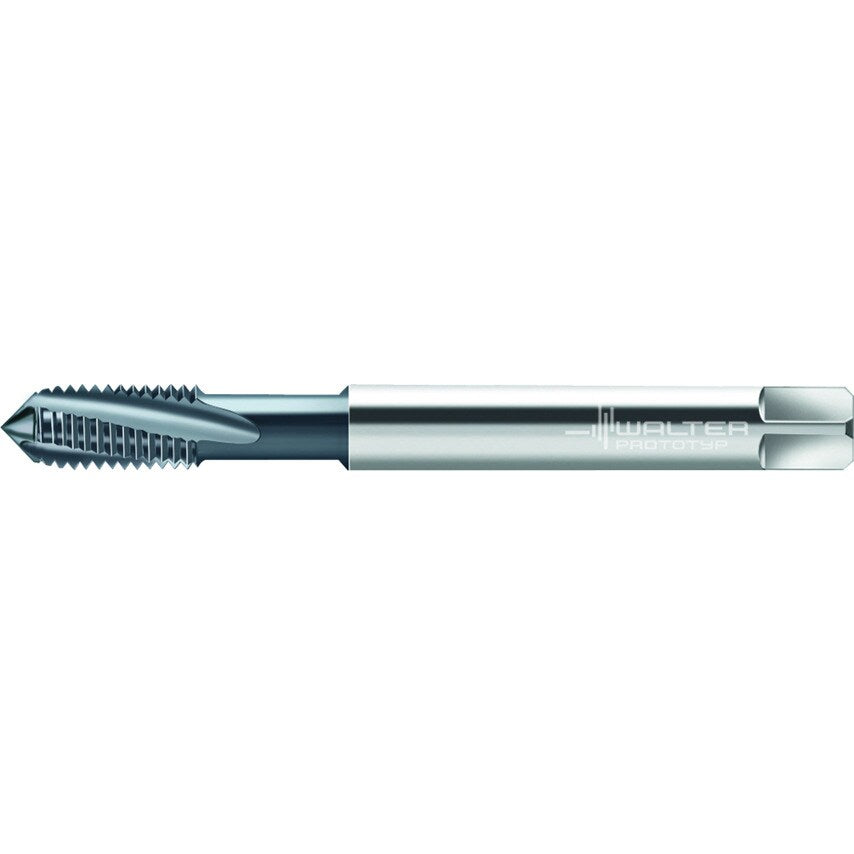

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD M/6HX ~DIN 371 right hand flute 25 Suitable for blind hole TICN M 2 P=0.0157in
| MFR Part No. | 7513051 |
| Usable Length | 8mm |
| Clamping Width | 2.1mm |
| Thread Size | M 2 |
| Thread Pitch | 0.4mm |
| Cutting Edge Length | 8mm |
| Tool Designation | 20410206-M2 |
| Driving Square Length | 5mm |
| Connection Diameter | 2.8mm |
| Functional Length | 45mm |
| Number of Grooves | 3 |
