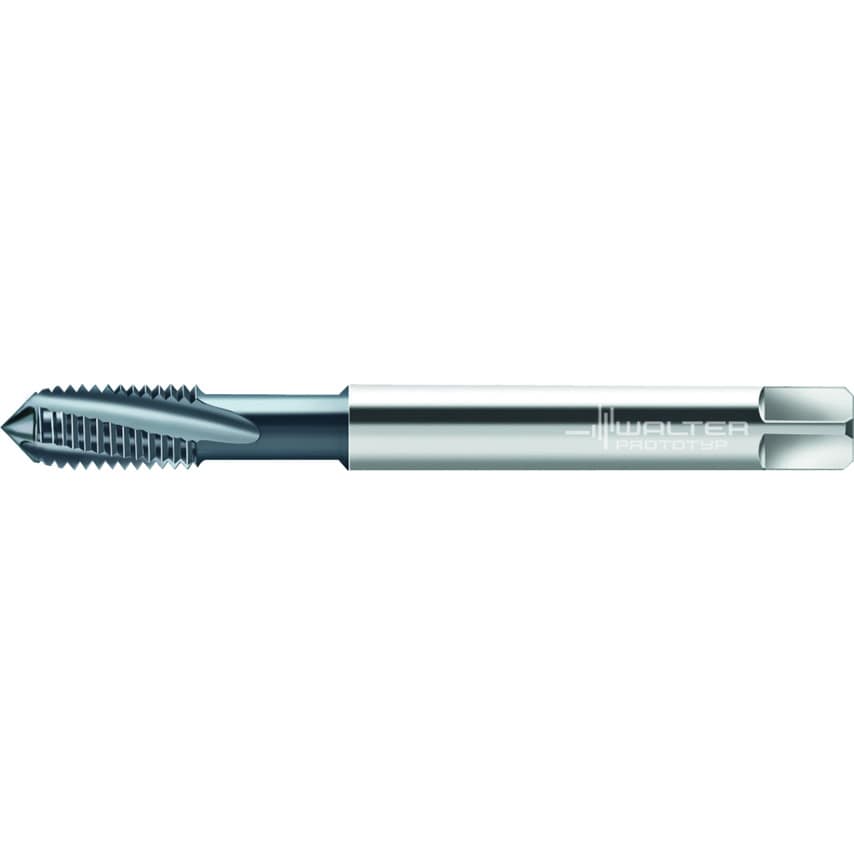

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD UNC/2B ~DIN 2184-1 right hand flute 25 Suitable for blind hole TICN UNC #6-32 P=32
| Number of Grooves | 3 |
| MFR Part No. | 7513067 |
| Usable Length | 12mm |
| Functional Length | 56mm |
| Cutting Edge Length | 12mm |
| Driving Square Length | 6mm |
| Connection Diameter | 4mm |
| Tool Designation | 22410206-UNC6 |
| Clamping Width | 3mm |
| Thread Size | UNC #6-32 |
