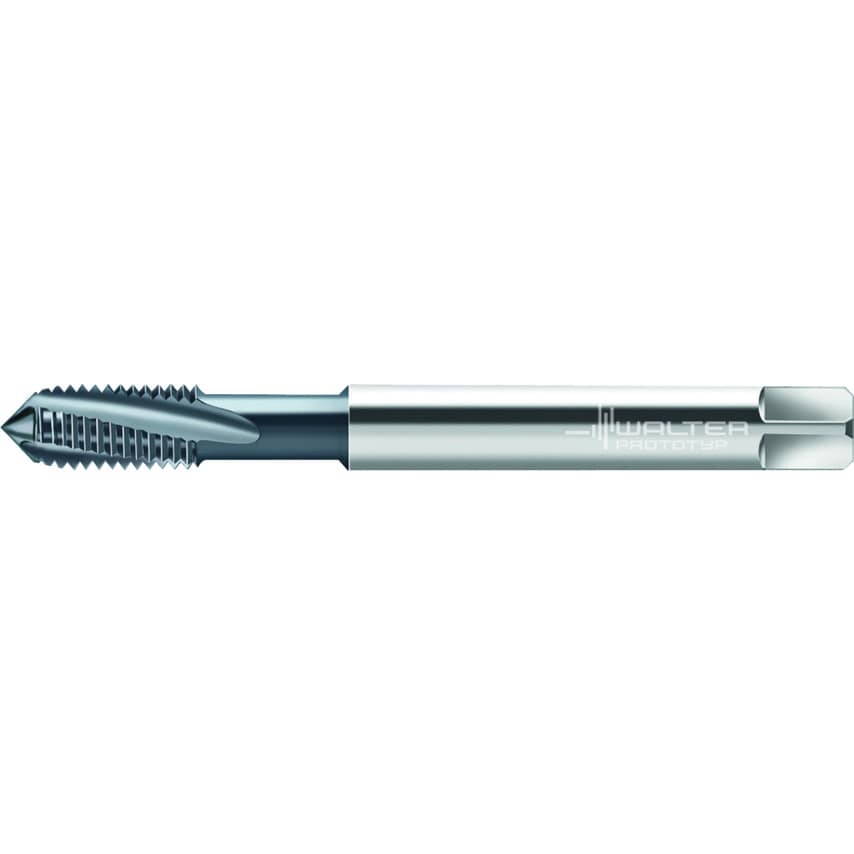

HSS-E PM machine taps Paradur Ni C = 2-3xTP (semi-bottom chamfer) 1,5xD UNC/2B ~DIN 2184-1 right hand flute 25 Suitable for blind hole TICN UNC #8-32 P=32
| Driving Square Length | 6mm |
| Tool Designation | 22410206-UNC8 |
| Functional Length | 63mm |
| Cutting Edge Length | 13mm |
| MFR Part No. | 7513068 |
| Thread Size | UNC #8-32 |
| Connection Diameter | 4.5mm |
| Number of Grooves | 3 |
| Clamping Width | 3.4mm |
| Usable Length | 13mm |
