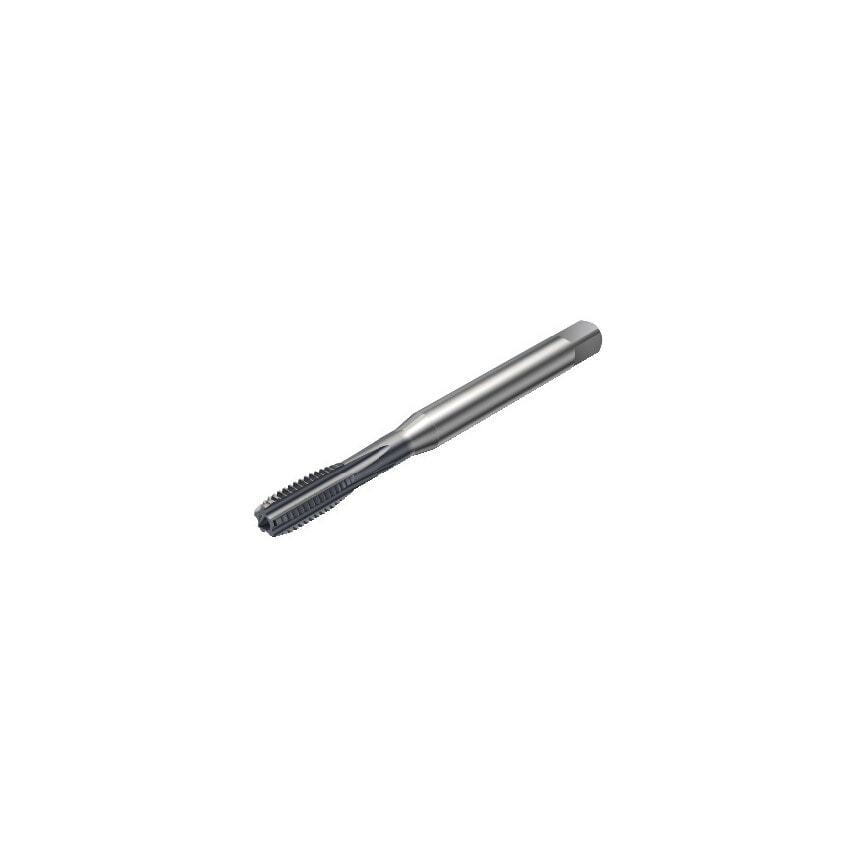

Product Range: CoroTap 100Tool Type: TappingCoroTap 100 is a range of straight flute taps that are optimized for short chipping ISO K, ISO N and ISO H materials. Suitable for through and blind holes.Features & Benefits- Straight flute taps for through and blind holes in short-chipping materials- Variety of thread forms and standards- External and internal coolant delivery
| Through Hole Function Property | Yes |
| Basic Standard Group | DIN 2184-1/ANSI |
| Unit Measured | Imperial |
| Threads Per Inch | 9 |
| Coolant Exit Style | 0 |
| Coating Process Type | PVD |
| Grade | D210 |
| MFR Part No. | 7323220281510 |
| Finish/Coating | TiAlN |
| Connection Diameter | 17.7038mm |
| Functional Length | 140mm |
| Blind Hole Function Property | Yes |
| Coating Type | TiAlN |
| Thread Diameter Size | UNC 7/8-9 |
| Thread Size | 9 |
| Usable Length | 90.95mm |
| CoroPak | 15.2 |
| Thread Tolerance Class | 2BX |
| Weight | 0.24kg |
| Finish | TiAlN |
| Coolant Entry Style | Without Coolant |
