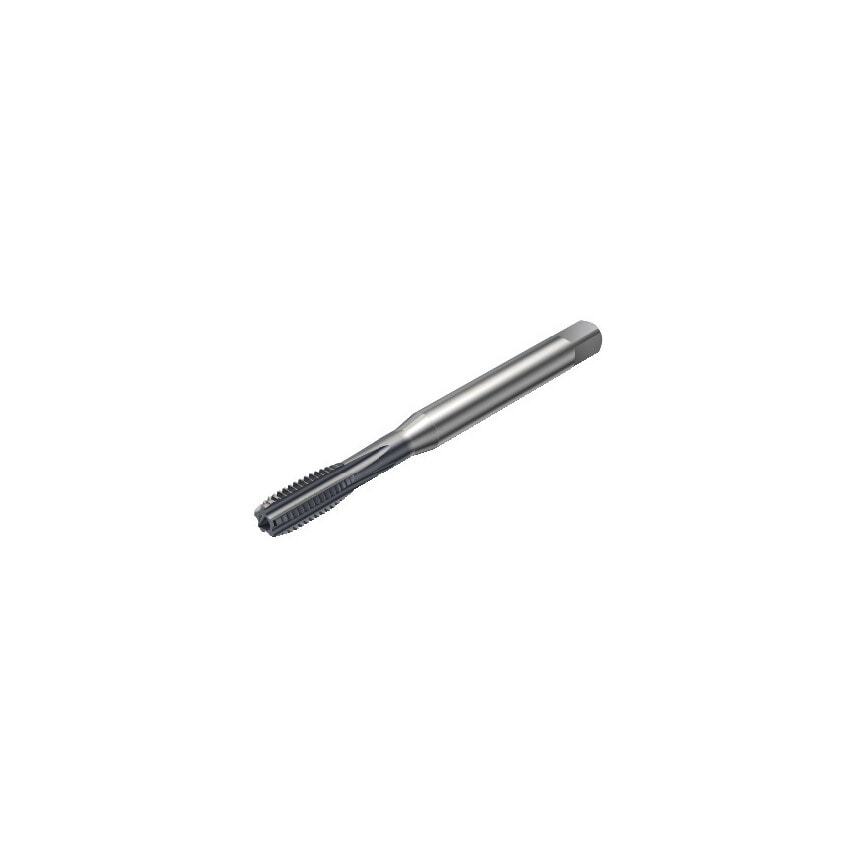

Product Range: CoroTap 100Tool Type: TappingCoroTap 100 is a range of straight flute taps that are optimized for short chipping ISO K, ISO N and ISO H materials. Suitable for through and blind holes.Features & Benefits- Straight flute taps for through and blind holes in short-chipping materials- Variety of thread forms and standards- External and internal coolant delivery
| Coolant Entry Style | 1 |
| Functional Length | 90mm |
| Finish | TiAlN |
| Finish/Coating | TiAlN |
| Blind Hole Function Property | Yes |
| Weight | 32.4g |
| Connection Diameter | 6.35mm |
| Basic Standard Group | DIN 2184-1/ANSI |
| Threads Per Inch | 24 |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Thread Diameter Size | UNF 5/16-24 |
| CoroPak | 15.2 |
| Thread Size | 0.318 x 0.238in |
| Thread Pitch | 24 |
| Coolant Exit Style | 1 |
| Thread Tolerance Class | 2BX |
| Unit Measured | Imperial |
| Grade | D210 |
| Coating Type | TiAlN |
| MFR Part No. | 7323220281848 |
| Usable Length | 33.5mm |
