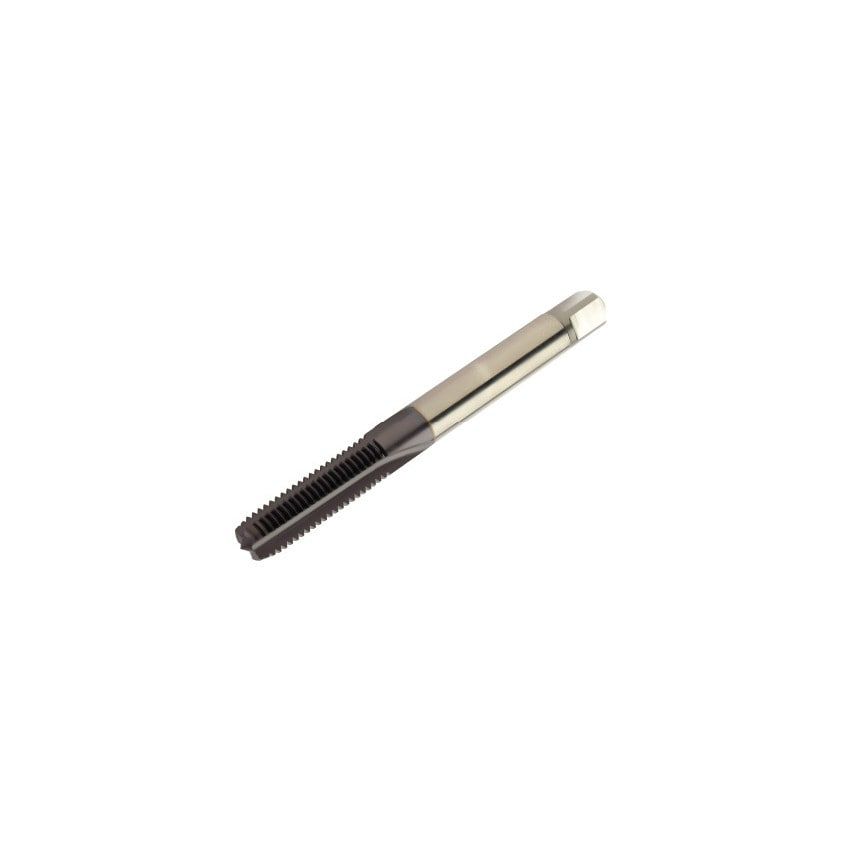

Product Range: CoroTap 100Tool Type: TappingCoroTap 100 is a range of straight flute taps that are optimized for short chipping ISO K, ISO N and ISO H materials. Suitable for through and blind holes.Features & Benefits- Straight flute taps for through and blind holes in short-chipping materials- Variety of thread forms and standards- External and internal coolant delivery
| Thread Tolerance Class | 6HX |
| Basic Standard Group | DIN 374 |
| Coolant Entry Style | 1 |
| Through Hole Function Property | Yes |
| Thread Size | M10 |
| Usable Length | 77mm |
| Thread Pitch | 1.25mm |
| Unit Measured | Metric |
| Weight | 32.8g |
| Functional Length | 100mm |
| CoroPak | 15.2 |
| Connection Diameter | 7mm |
| Coolant Exit Style | 1 |
| Finish/Coating | TiAlN |
| Coating Process Type | PVD |
| Blind Hole Function Property | Yes |
| Coating Type | TiAlN |
| Grade | D210 |
| Thread Diameter Size | MF 10x1.25 |
| MFR Part No. | 7323220281138 |
